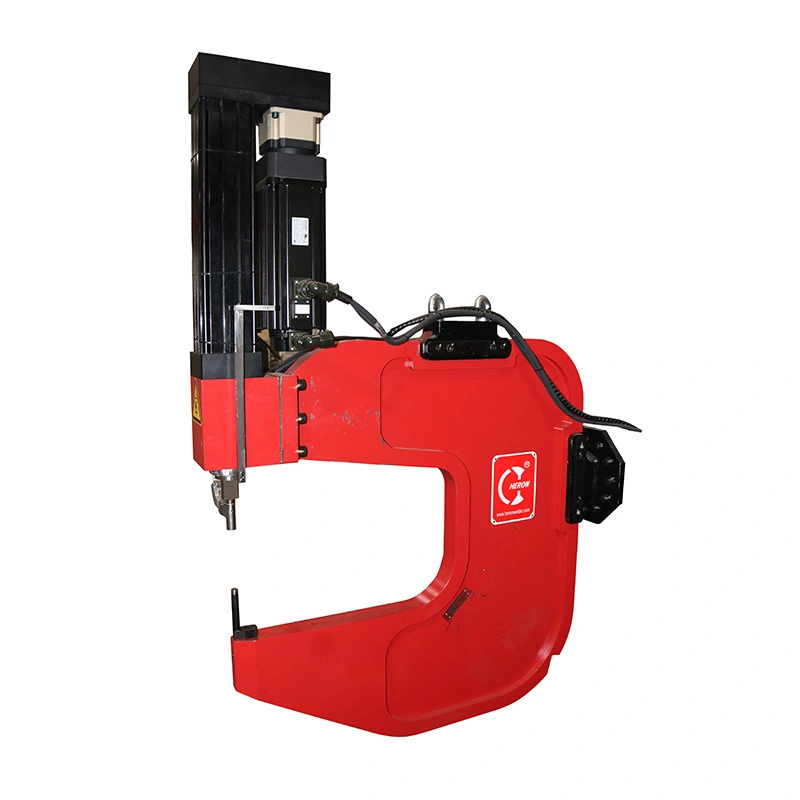

FSPR Riveting Gun
Tanım
The FSPR self-pierce riveting technique utilizes specialized riveting equipment to automatically feed specialized rivets into the punch. During which the parent material to be connected is punched, sheared, and extracted through the rivets, and then extruded in the periphery of the rivets through the die to form a reliable connection.
Başvuru
The technology is widely used in the riveting of high-strength aluminum alloy, thermoforming steel and carbon fiber, which is further applied in auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
Fastening Samples
Şartname
Model # | ZM6-080-C22001 | |
Güç Kaynağı | V/Φ/HZ | 220/1/50 |
Max Air Pressure | Mpa | 0.5 |
Press Force | KN | 80 |
Total Stroke | mm | 100 |
Power Stroke | mm | 10 |
Dimension(LxWxH) | mm | 827x213x1526 |
