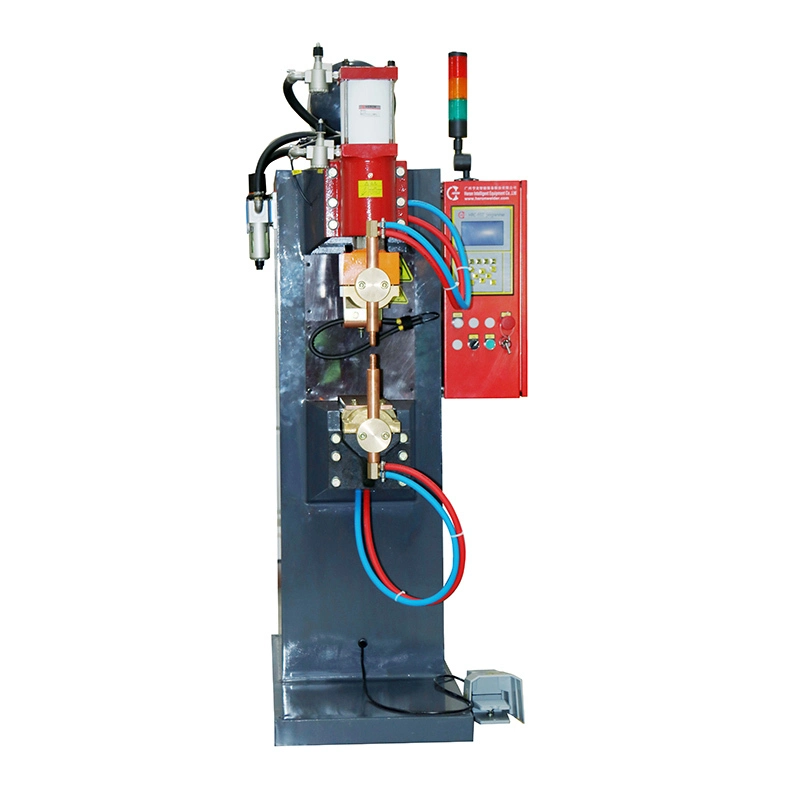

AC Spot / Press Welder DN-125KVA
Widely used in the spot welding, projection welding of many different materials. And It is widely used in auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
Model： DN-125KVA
MOQ: 1stuks
Price terms： FOB Guangzhou
Garantie： 1 jaar
After sale service： Gratis trainingsservice
Lead time： under 5 units one week
Industries： auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
Beschrijving
1. The power of our resistance welding machine is ranging from 25KVA to 150KVA.
2. The maximum short circuit current of our welding machine is ranging from 12KA to 34KA.
3. At air pressure of 6bar, the welding pressure of our welder is ranging from 2510N to 15000N.
4. Circular shaft guiderail pressure welding head is one of standard configuration of the type of welding machine.
5. The effective throat depth is 950mm.
6. One-stroke cylinder is standard configuration of our welding machine. Besides, double-stroke cylinder and servo electric cylinder is also compatible with our welding machine, which are optional for customers.
Main Features
Model # | DN-125 | |
Rated Capacity | KVA | 125 |
Voeding | V/Φ/Hz | 380/1PH/50HZ |
Maximaal Primary Current | A | 210 |
Primary Cable | MM2 | 50 |
Maximaal Short Circuit Current | KA | 28 |
Rated Duty Cycle | % | 50 |
Secondary Empty Voltage | V | 9.5 |
Welding Cylinder Size | Φ*L | Φ160*100 |
Working Pressure | N | 10000 |
Compressed Air Pressure | MPa | 0.6～0.7 |
Cooling Water Consumption | L/MIN | 8 |
Compressed Air Consumption | L/time | 5.84 |
Throat Depth | MM | 543 |
Arm Gap | MM | 364 |
Electrode Size | MM | Φ30 |
Afmetingen | H(MM) | 1803 |
L(MM) | 1284 | |
|
| |
W(MM) | 702 | |
Sollicitatie
It is widely used in automobile & auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
Welding Sample
