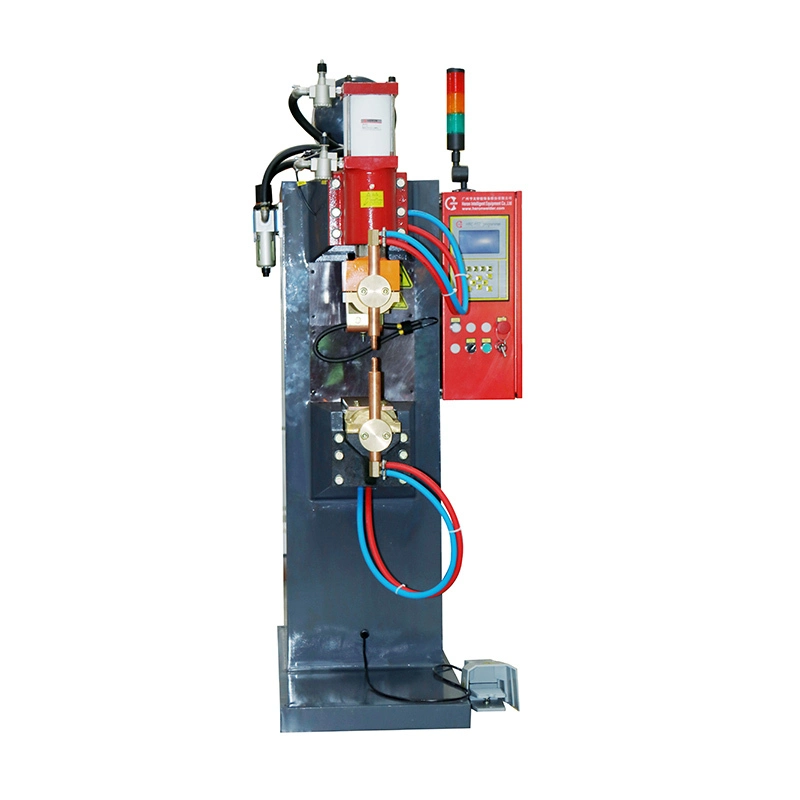

AC Spot / Press Welder DN-250KVA
Widely used in the spot welding, projection welding of many different materials. And It is widely used in auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
模型： DN-250KVA
MOQ: 1件
Price terms： 广州离岸价
保修单： 1 年
After sale service： 免费培训服务
Lead time： under 5 units one week
Industries： auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
描述
1. The power of our resistance welding machine is ranging from 25KVA to 150KVA.
2. The maximum short circuit current of our welding machine is ranging from 12KA to 34KA.
3. At air pressure of 6bar, the welding pressure of our welder is ranging from 2510N to 15000N.
4. Circular shaft guiderail pressure welding head is one of standard configuration of the type of welding machine.
5. The effective throat depth is 950mm.
6. One-stroke cylinder is standard configuration of our welding machine. Besides, double-stroke cylinder and servo electric cylinder is also compatible with our welding machine, which are optional for customers.
规格
Model # | DN-250 | |
额定容量 | KVA | 250 |
电源 | 电压/φ/赫兹 | 380/1PH/50HZ |
最大限度。 一次电流 | A | 465 |
初级电缆 | MM2 | 150 |
最大限度。 短路电流 | KA | 42 |
额定 Duty Cycle | % | 50 |
次级空电压 | V | 13/11 |
焊接筒尺寸 | Φ*L | Φ200*100 |
工作压力 | N | 15000 |
压缩空气压力 | MPa | 0.6～0.7 |
Cooling Water Consumption | L/MIN | 14 |
压缩空气消耗量 | L/time | 9.24 |
喉深 | MM | 528 |
臂距 | MM | 425 |
Electrode Size | MM | Φ30 |
方面 | H(MM) | 1803 |
L(MM) | 1269 | |
W(MM) | 560 | |
应用
It is widely used in automobile & auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
Welding Sample
