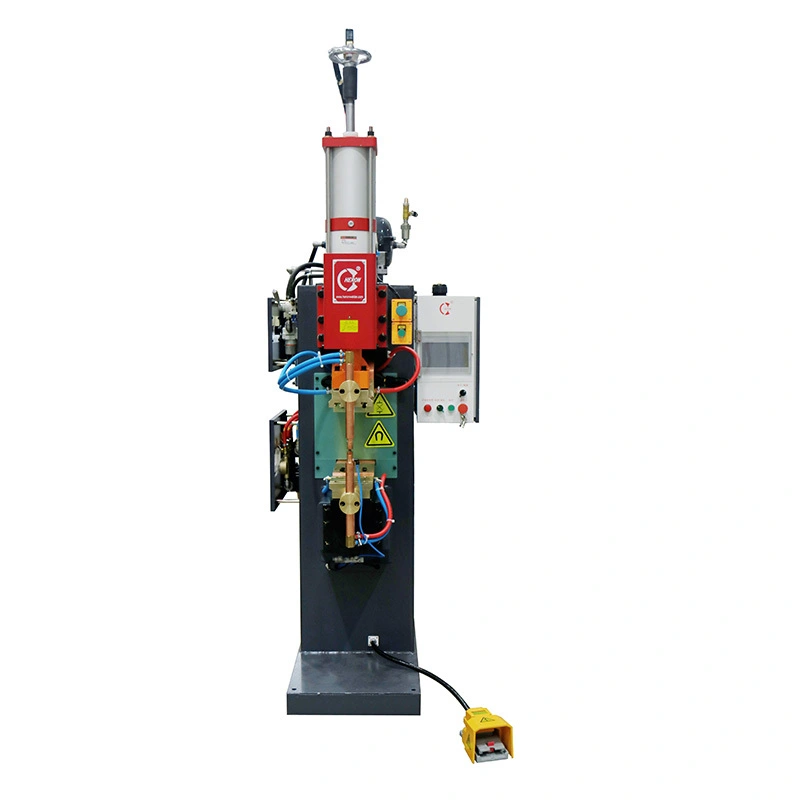

L type MFDC Spot <000000> Projection Welder DB-250KVA
Beschrijving
The L type MFDC spot & projection welder DB-250KVA with roller ram and strong frame, which ensure excellent spot and reliable projection welding process, with the rise of welding current in 3ms and a maximum short-circuit current of 60KA.
Main Features
Welding head can be | Roller ram or round shaft guide , cylinder specifications φ160 * 120 |
Equipment color | Machine body : graphite gray RAL7024, back door signal white RAL9003; control box: front :signal white RAL9003, body graphite gray RAL7024 welding head : red RAT4L001 |
Water circuit | Display table + flow switch |
Controller | HRC-802 (with PLC) |
Throat depth | 500mm |
Platen gap | 340mm |
Stroom | Available for 250KVA |
Inverter size | 600A/1200A |
Electrode tile | T-type (150 wide) |
PLC | Mitsubishi / Siemens optional |
Touch screen | Kunlun Tongtai |
Feet | Shock-absorbing feet |
Sollicitatie
Adopting Heron MF inverter controller HRC802/HRC803 and Heron MF transformer, it has exceptional rigidity, a compact design and less space occupation. Further, this product conforms to European CE and North American CUL standards. This machine adopts a DSP architecture that offers three frequency options of 1KHZ, 2KHZ, and 4KHZ, enabling stable and reliable welding. Moreover, it features its own I/O interface and can directly control the proportional valve, with modular design to simplify usage and maintenance
Welding Samples
Specificatie
Model | DB-250 | |
Rated Capacity | KVA | 250 |
Voeding | V/Φ/Hz |
|
Maximaal Primary Current | A | 150 |
Primary Cable | MM2 | 3*35+2*16 |
Maximaal Short Circuit Current | KA | 45 |
Rated Duty Cycle | % | 20 |
Secondary Empty Voltage | V | 12.5 |
Welding Cylinder Size | Φ*L | Φ200*100 |
Maximaal Working Pressure | N | 15359.8 |
Throat Depth | MM | 511 |
Arm Gap | MM | 524 |
Afmetingen | H(MM) | 1900 |
L(MM) | 1229 | |
W(MM) | 828 | |
