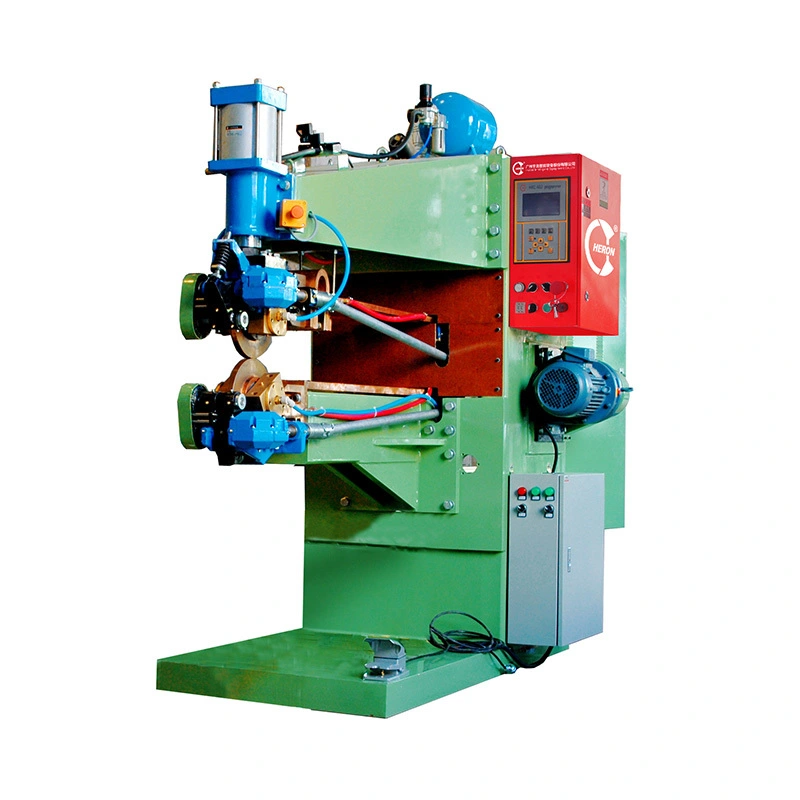

AC longitudinal seam welder 50/80/100/150/200KVA

50/80/100/150/200KVA,AC

1szt.

FOB Guangzhou

1 rok

Bezpłatna usługa szkoleniowa

Under 5 units one week

Auto parts industry, home appliance industry, compressor industry, hardware industry, etc

询问

写评论

Opis

AC longitudinal seam welder 50/80/100/150/200KVA 2

The machine uses HRC802 and HRC medium frequency welding transformer from Heron's medium frequency inverter controller. It also features Heron's patented silver tile electrode holder, which enhances its reliability and longevity.

Aplikacja

AC longitudinal seam welder 50/80/100/150/200KVA 4

It's widely used in the seam welding of many different materials, such as non-ferrous metals, high-temperature alloys, low carbon steel, stainless steel, high-strength steel, galvanized steel, aluminum alloy, etc.

Welding Samples

AC longitudinal seam welder 50/80/100/150/200KVA 5

Welding Sample One

Welding Sample Two

Specyfikacja

AC longitudinal seam welder 50/80/100/150/200KVA 8

Model #		FN-50-L**	FN-80-L**	FN-100-L**	FN-150-L**
Rated Capacity	KVA	50	80	100	150
Zasilacz	V/Φ/Hz	380/3/50	380/3/50	380/3/50	380/3/50
Maks. Primary Current	A	93	149	186	279
Primary Cable	MM2	50	50	120	120
Maks. Short Circuit Current	KA	14.5	19.43	20.4	27.5
Oceniony Duty Cycle	%	30	30	30	30
Secondary Empty Voltage	V	5.4\4.5	5.8\6.7	6.7\5.8	8.6\8
Welding Cylinder Size	Φ*L	Φ100*60	Φ125*80	Φ160*80	Φ160*80
Maks. Working Pressure	N	3900	6000	10000	10000
Compressed Air Pressure	MPa	0.6～0.7	0.6～0.7	0.6～0.7	0.6～0.7
Cooling Water Consumption	L/MIN	18	20	20	24
Compressed Air Consumption	L/time	2.28	3.56	5.84	5.84
Throat Depth	MM	1147	1147	1147	1147
Arm Gap	MM	115	115	115	115
Electrode Size	MM	Φ250*20	Φ250*20	Φ250*20	Φ250*20
Wymiary	H(MM)	2368	2368	2368	2368
	L(MM)	2274	2274	2274	2274
	W(MM)	1263	1263	1263	1263
