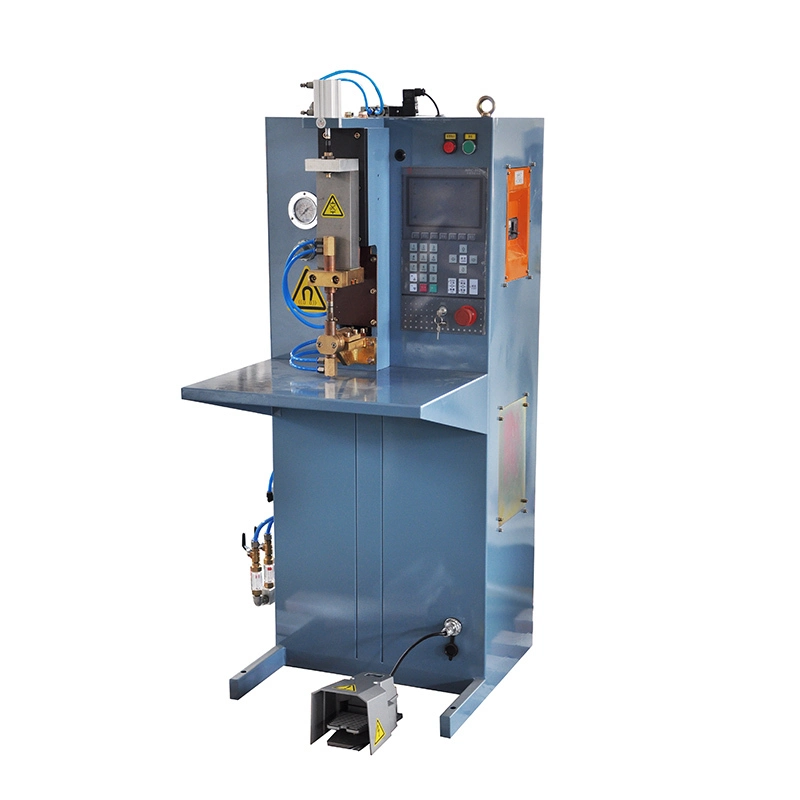

MFDC Bench Spot /Press Welders DB-55KVA
With over 30 years of welding specification cloud databases and expert workmanship, Heron is able to help customers make better choices and customise professional welding specifications and site management guides to ensure weld quality.
Modelo： DB-55KVA
MOQ: 1piezas
Price terms： FOB Cantón
Garantía： 1 año
After sale service： Servicio de formación gratuito
Lead time： under 5 units one week
Industries： auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
Descripción
The equipment is all independently developed, and the main components of the equipment are self-produced, which can ensure the delivery time of customers and the stability of products.
Main Features
Model # | DB-55-**1** | |
Rated Capacity | KVA | 55 |
Fuente de alimentación | V/Φ/Hz | 380V/3/50Hz |
Máx. Primary Current | A | 63 |
Primary Cable | MM2 | 16 |
Máx. Short Circuit Current | KA | 18 |
Calificado Duty Cycle | % | 20 |
Secondary Empty Voltage | V | 8.9 |
Welding Cylinder Size | Φ*L | Φ32*50 |
Máx. Working Pressure | N | 394 |
Presión de aire comprimido | MPa | 0.6～0.7 |
Cooling Water Consumption | L/MIN | 6 |
Consumo de aire comprimido | L/time | 1.43 |
Throat Depth | MM | 123.5 |
Arm Gap | MM | 138 |
Electrode Size | MM | Φ25.4 |
Dimensiones | H(MM) | 1461 |
L(MM) | 863 | |
W(MM) | 700 | |
Solicitud
It is widely used in automobile & auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
Welding Sample
