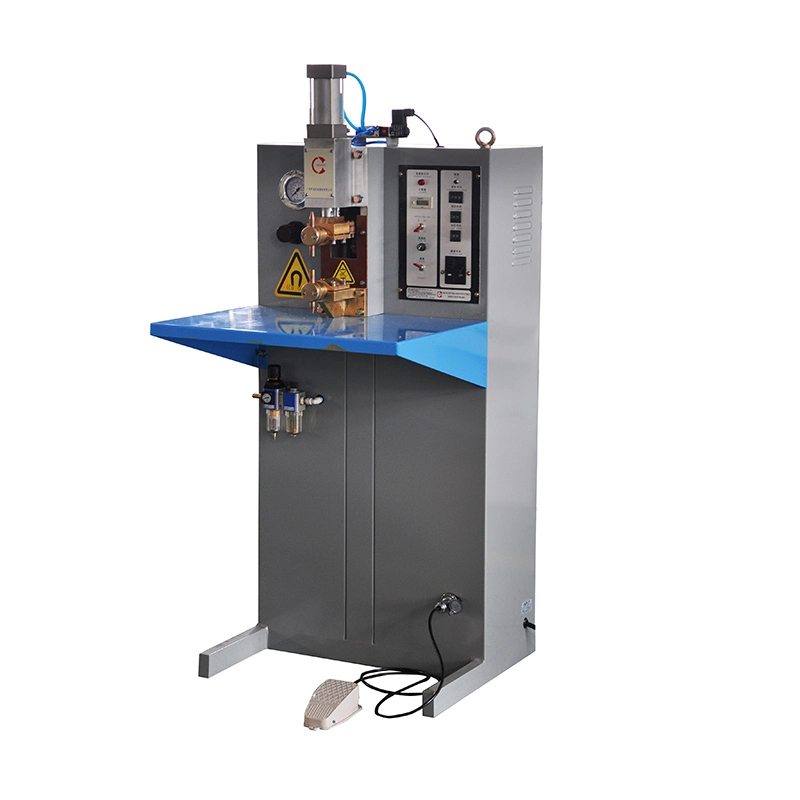

CDW Bench Spot /Press Welders DR-500J
The CDW bench spot welding and projection welding machine is mainly applied to precise spot welding and small screw nut projection welding process.
Beschrijving
1. Circular shaft guiderail is one of standard configuration of the type of welding machine.
2.T he effective throat depth is 950mm.
3. One-stroke cylinder is standard configuration of our welding machine. Besides, double-stroke cylinder and servo electric cylinder is also compatible with our welding machine, which are optional for customers.
Specificatie
Model # | DR-500-** | |
Volume of capacitor | μf | 5000 |
Rated Capacity | KVA | 2 |
Voeding | V/Φ/Hz | 220/1/50 |
Maximaal Primary Current | A | 9 |
Primary Cable | MM2 | 4 |
Maximaal Short Circuit Current | KA | 14.6 |
Rated Duty Cycle | % | 50 |
Secondary Empty Voltage | V | 10 |
Welding Cylinder Size | Φ*L | Φ25*25 |
Maximaal Working Pressure | N | 240 |
Compressed Air Pressure | MPa | 0.6～0.7 |
Cooling Water Consumption | L/MIN | * |
Compressed Air Consumption | L/time | 0.14 |
Throat Depth | MM | 116.5 |
Arm Gap | MM | 75.5 |
Electrode Size | MM | Φ12 |
Afmetingen | H(MM) | 1225 |
L(MM) | 550 | |
W(MM) | 670 | |
Sollicitatie
It is widely used in automobile & auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
Welding Sample
