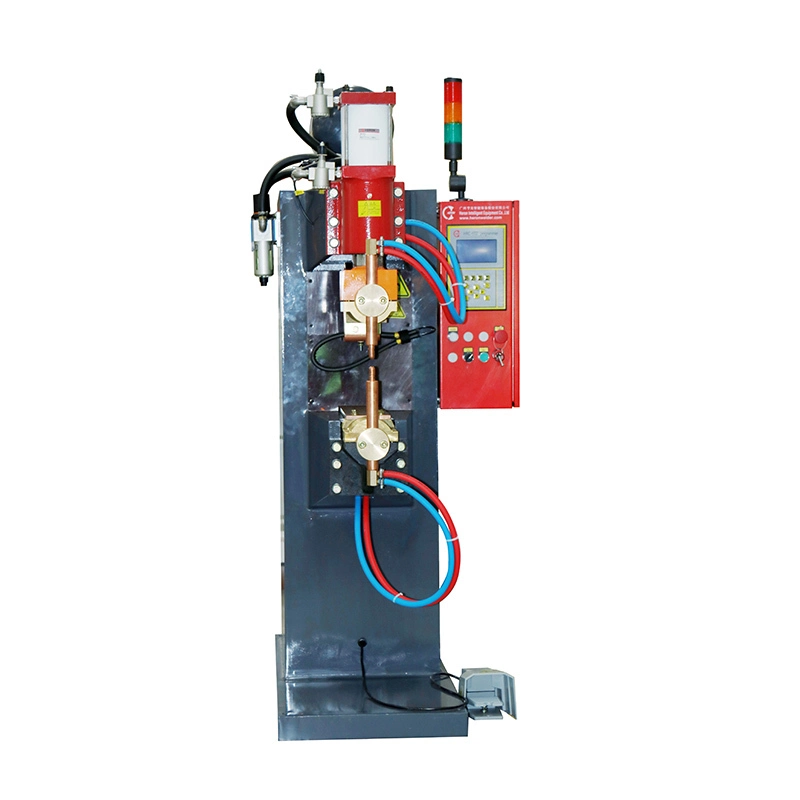

AC Spot / Press Welder DN-500KVA
H series AC resistance spot welding and projection machine is mainly applied to spot welding process and projection process of ferrous metal.
Modelo： DN-500KVA
MOQ: 1peças
Price terms： FOB Cantão
Garantia： 1 ano
After sale service： Serviço de treinamento gratuito
Lead time： under 5 units one week
Industries： auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
Descrição
1. The capacity of our resistance welding machines ranges from 25 kVA to 150 kVA.
2. The maximum short circuit current of our welding machines ranges from 12KA to 34KA.
3. At 6 bar air pressure, the welding pressure of our welding machine ranges from 2510N to 15000N.
4. Pressure welding head with rotating shaft and guide rail is one of the standard configurations for welding machines.
5. The effective neck depth is 950 mm.
6. The single stroke cylinder is the standard configuration for our welding machine. In addition, two-stroke cylinder and servo-electric cylinder are also compatible with our welding machine, which are optional for customers.
Especificação
Model # | DN-500 | |
Rated Capacity | KVA | 500 |
Fonte de energia | V/Φ/Hz | 380/1PH/50HZ |
Máx. Primary Current | A | 930 |
Primary Cable | MM2 | 240 |
Máx. Short Circuit Current | KA | 76 |
Classificado Duty Cycle | % | 50 |
Secondary Empty Voltage | V | 18.0/14.0 |
Welding Cylinder Size | Φ*L | Φ250*150 |
Working Pressure | N | 24000 |
Compressed Air Pressure | MPa | 0.6～0.7 |
Cooling Water Consumption | L/MIN | 14 |
Compressed Air Consumption | L/time | 14.43 |
Throat Depth | MM | * |
Arm Gap | MM | * |
Electrode Size | MM | * |
Dimensões | H(MM) | * |
L(MM) | * | |
W(MM) | * | |
Aplicativo
AC resistance spot welding and projection machine is mainly applied to spot welding process and projection process of ferrous metal.
Welding Sample
