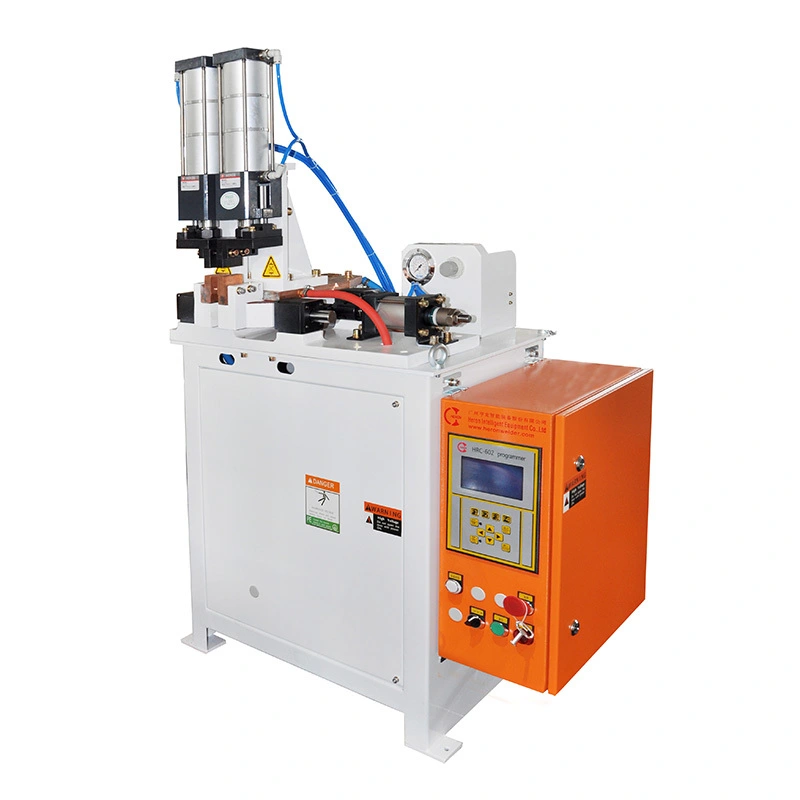

Butt Welder with vertical pressurize DN-50KVA/ DN-63KVA
5.0
:
DN-50KVA/ DN-63KVA
:
1piezas
:
FOB Cantón
:
1 año
:
Servicio de formación gratuito
:
Under 5 units one week
:
Auto parts industry, home appliance industry, compressor industry, hardware industry, etc
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
请填写下面的表格以申请报价或请求有关我们的更多信息。请在您的留言中详细说明，我们会尽快回复您的回复。我们已准备好开始在新项目上工作，立即联系我们才能开始。
Descripción
The welding process is completed by regulating the flash flow via the velocity of the moving bar, thereby achieving a molten state in the welding section. Upon cessation of power, the electrodes are swiftly moved to effectuate top forging.
Solicitud
It's widely used in the butt welding of many different materials, such as non-ferrous metals, high-temperature alloys, low carbon steel, stainless steel, high-strength steel, galvanized steel, aluminum alloy, etc.
Welding Samples
0 (2)
Especificación
| Model # | DN-50-U**0** | DN-63-U**0** | |
| Rated Capacity | KVA | 50 | 63 |
| Fuente de alimentación | V/Φ/Hz | 380V/1/50Hz | |
| Máx. Primary Current | A | 94 | 117 |
| Primary Cable | MM2 | 25 | 25 |
| Máx. Short Circuit Current | KA | 24 | 24.3 |
| Rated Duty Cycle | % | 50 | 50 |
| Secondary Empty Voltage | V | 6.1 | 6.1 |
| Welding Cylinder Size | Φ*L | * | * |
| Máx. Working Pressure | N | * | * |
| Presión de aire comprimido | MPa | 0.6～0.7 | 0.6～0.7 |
| Cooling Water Consumption | L/MIN | 8 | 8 |
| Consumo de aire comprimido | L/time | * | * |
| Throat Depth | MM | * | * |
| Arm Gap | MM | * | * |
| Electrode Size | MM | * | * |
| Dimensiones | H(MM) | 1280 | 1280 |
| L(MM) | 510 | 510 | |
| W(MM) | 873 | 873 | |
