15KJ Capacitor Discharge Welder
Highly configurable capacitor discharge resistance welders are primarily used in the nut and multipoint projection welding process, offering unique advantages in the projection welding of hot formed steel and galvanized steel nuts.
Modelo： Type H; 15000J
MOQ: 1piezas
Price terms： FOB Cantón
Garantía： 1 año
After sale service： Servicio de formación gratuito
Lead time： under 5 units one week
Industries： auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
Descripción

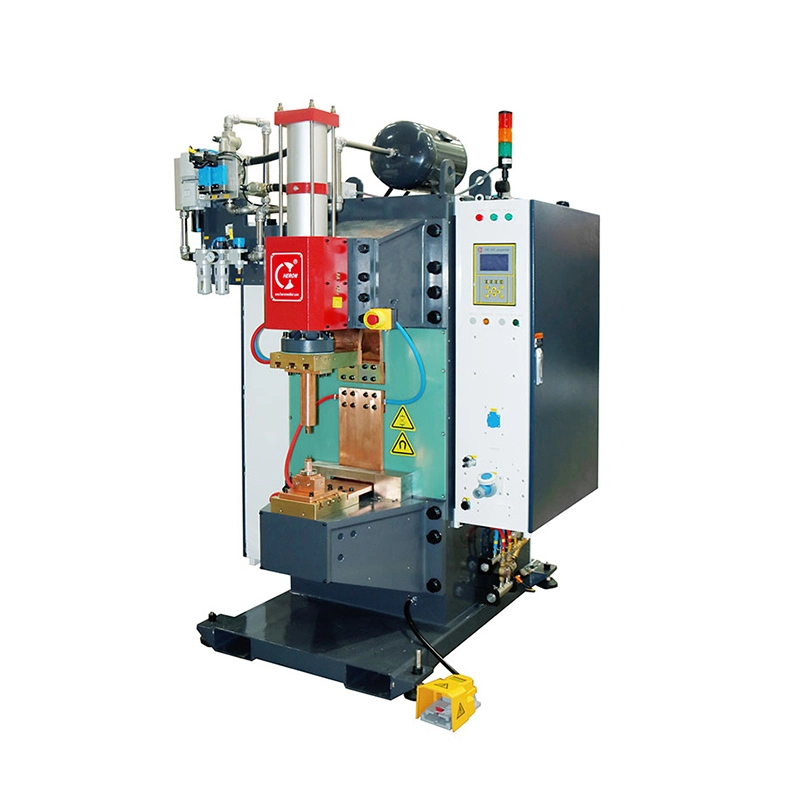

The DR-15000J H-type spot and projection welding machine has a strong frame which ensures good reliability of the spot and projection welding process, and the maximum short-circuit current can be 1000 KA.
Especificación
Model # | DR-15000 | |
Volume of capacitor | μf | 30000 |
Rated Capacity | KVA | 60 |
Fuente de alimentación | V/Φ/Hz | 380/3/50 |
Máx. Primary Current | A | 79 |
Primary Cable | MM2 | 25 |
Máx. Short Circuit Current | KA | 100 |
Rated Duty Cycle | % | 50 |
Secondary Empty Voltage | V | 15/18 |
Welding Cylinder Size | Φ*L | Φ160*150 |
Máx. Working Pressure | N | 10000 |
Throat Depth | MM | 400 |
Arm Gap | MM | 500 |
Dimensiones | H(MM) | 2437 |
L(MM) | 1500 | |
W(MM) | 1069 | |
Solicitud
It is widely used in the automotive and auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
Welding Sample
Machine specifications
Welding head can be | Roller ram or round shaft guide , cylinder specifications φ160 * 120 |
Equipment color |
|
Machine body | Graphite gray ral7024, back door signal white ral9003; |
Control box | Front: Signal white ral9003, body graphite gray ral7024 |
Welding head | Red rat4l001 |
Controller | Hrc-211 |
Throat depth | 500mm, platen gap: 340mm |
Rated capacity | 15000J |
Welding effect
