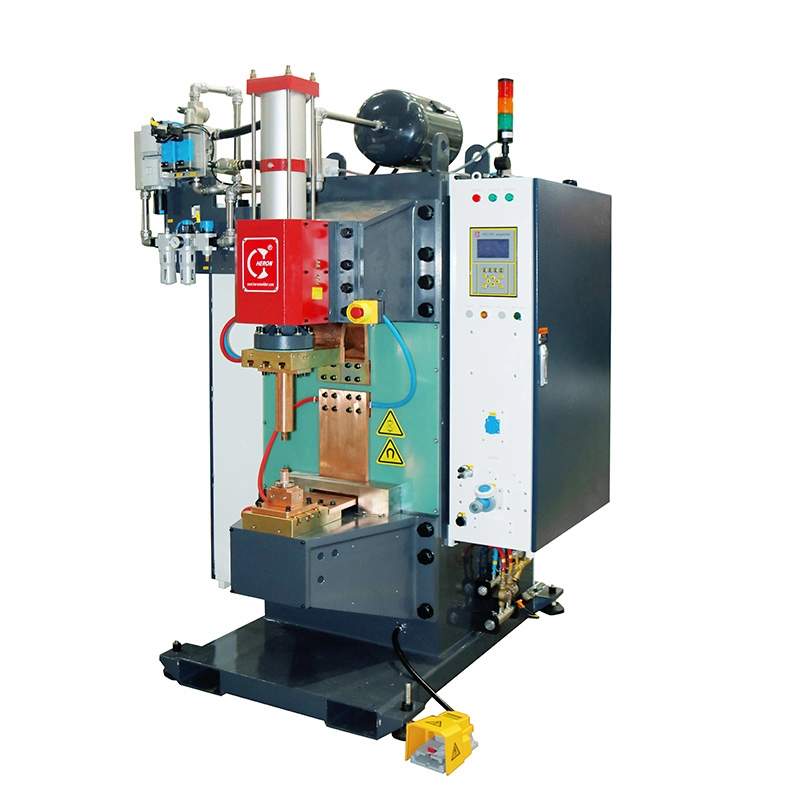

30KJ Capacitor Discharge Welder
High configuration capacitor discharge resistance welding machine is mainly applied to screw nut and multi spot projection welding process and has unique advantage in hot-forming steel and galvanized steel screw nut projection welding.
Malli： Type H; 30000J
MOQ: 1kpl
Price terms： FOB Guangzhou
Takuu： 1 vuosi
After sale service： Ilmainen koulutuspalvelu
Lead time： under 5 units one week
Industries： auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
Kuvaus
Medium voltage capacitor discharge resistance welding technology was invented by HERON in 2010 and features non-polarized capacitors made of metal film that do not easily decay or explode.
Erittely
Model # | DR-30000 | |
Volume of capacitor | μf | 60000 |
Rated Capacity | KVA | 100 |
Virtalähde | V/Φ/Hz | 380/3/50 |
Max. Primary Current | A | 132 |
Primary Cable | MM2 | 50 |
Max. Short Circuit Current | KA | 140 |
Arvioitu Duty Cycle | % | 50 |
Secondary Empty Voltage | V | 20/26.6 |
Welding Cylinder Size | Φ*L | Φ250*150 |
Max. Working Pressure | N | 24000 |
Throat Depth | MM | 400 |
Arm Gap | MM | 500 |
Mitat | H(MM) | 2437 |
L(MM) | 1500 | |
W(MM) | 1451 | |
Sovellus
It is widely used for spot welding of high strength steels, hot formed steels, ferrous and non-ferrous metals.
Welding Sample
Machine specifications
Welding head can be | Roller ram or round shaft guide , cylinder specifications φ160 * 120 |
Equipment color |
|
Machine body | Graphite gray ral7024, back door signal white ral9003; |
Control box | Front: Signal white ral9003, body graphite gray ral7024 |
Welding head | Red rat4l001 |
Controller | Hrc-211 |
Throat depth | 500mm, platen gap: 340mm |
Rated capacity | 30000J |
Welding effect
