20KJ Capacitor Discharge Welder
The power of our resistance welding machine is ranging from 10KJ to 120KJ.The maximum short circuit current of our welding machine is ranging from 90KA to 1000KA.One-stroke cylinder is standard configuration of our welding machine. Besides, double-stroke cylinder and servo electric cylinder is also compatible with our welding machine, which are optional for customers.
Модель： Type H; 20000J
MOQ: 1шт.
Price terms： FOB Гуанчжоу
Гарантия： 1 год
After sale service： Бесплатное обучение
Lead time： under 5 units one week
Industries： auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
Описание

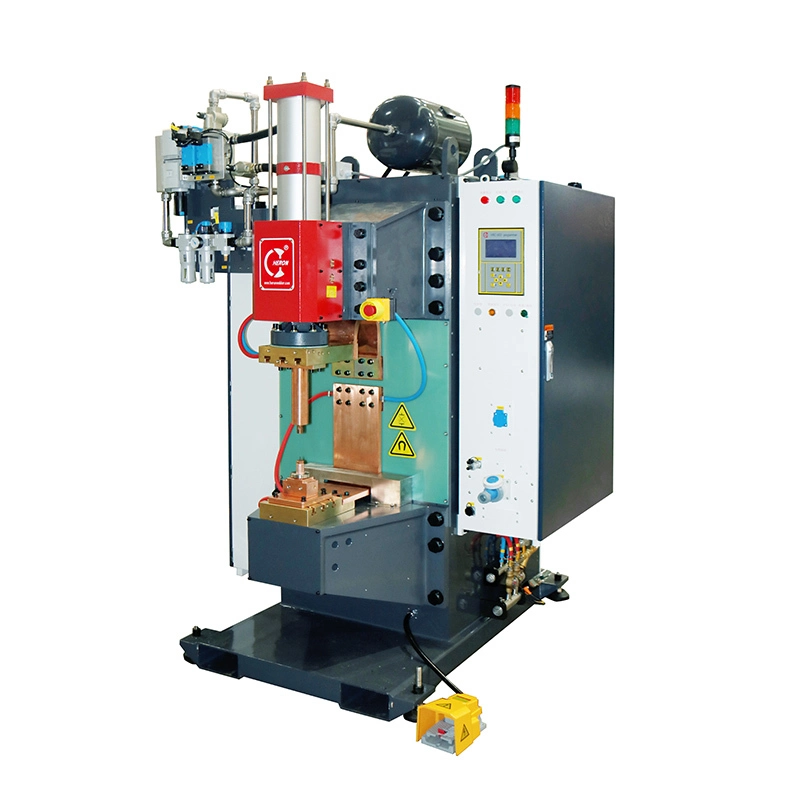

The H Type CDW Spot & Projection Welder DR-20000J with roller ram, and strong frame, which ensure good spot and projection welding process reliable, and the maximum shortcut current can be 1000KA.
Спецификация
Model # | DR-20000 | |
Volume of capacitor | μf | 40000 |
Rated Capacity | KVA | 60 |
Источник питания | V/Φ/Hz | 380/3/50 |
Макс. Primary Current | A | 79 |
Primary Cable | MM2 | 50 |
Макс. Short Circuit Current | KA | 130 |
Rated Duty Cycle | % | 50 |
Secondary Empty Voltage | V | 19/23 |
Welding Cylinder Size | Φ*L | Φ200*150 |
Макс. Working Pressure | N | 15000 |
Throat Depth | MM | 400 |
Arm Gap | MM | 500 |
Размеры | H(MM) | 2437 |
L(MM) | 1500 | |
W(MM) | 1451 | |
Приложение
High configuration capacitor discharge resistance welding machine is mainly applied to screw nut and multi spot projection welding process and has unique advantage in hot-forming steel and galvanized steel screw nut projection welding.
Welding Sample
Machine specifications
Welding head can be | Roller ram or round shaft guide , cylinder specifications φ160 * 120 |
Equipment color |
|
Machine body | Graphite gray ral7024, back door signal white ral9003; |
Control box | Front: Signal white ral9003, body graphite gray ral7024 |
Welding head | Red rat4l001 |
Controller | Hrc-211 |
Throat depth | 500mm, platen gap: 340mm |
Rated capacity | 20000J |
Welding effect
