H type MFDC Spot <000000> Projection Welder DB-500KVA
Description

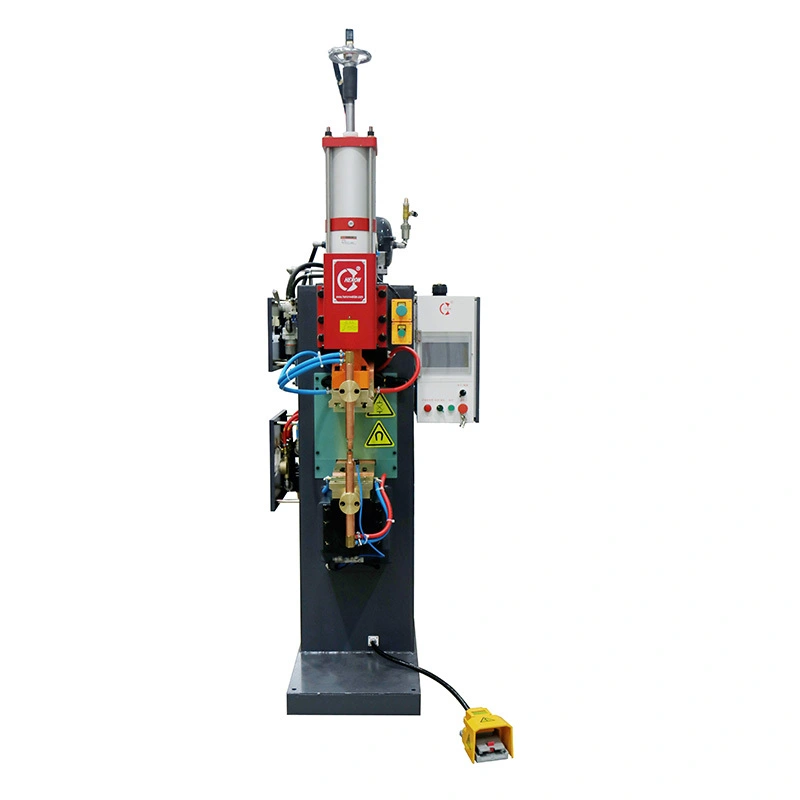

The H type MFDC spot & projection welder DB- 500KVA with roller ram and strong frame, which ensure excellent spot and reliable projection welding process, with the rise of welding current in 3ms and a maximum short-circuit current of 60KA.
Main Features
Welding head can be | Roller ram or round shaft guide , cylinder specifications φ160 * 120 |
Equipment color | Machine body : graphite gray RAL7024, back door signal white RAL9003; control box: front :signal white RAL9003, body graphite gray RAL7024 welding head : red RAT4L001 |
Water circuit | Display table + flow switch |
Controller | HRC-802 (with PLC) |
Throat depth | 500mm |
Platen gap | 340mm |
Pouvoir | Available for 500KVA |
Inverter size | 600A/1200A |
Electrode tile | T-type (150 wide) |
PLC | Mitsubishi / Siemens optional |
Touch screen | Kunlun Tongtai |
Feet | Shock-absorbing feet |
Application
The product is widely used in the spot welding, projection welding, seam welding, diffusion welding of many different materials, such as non-ferrous metals, high-temperature alloys, low carbon steel, stainless steel, high-strength steel, galvanized steel, aluminum alloy, etc. And it is in line with European CE and North American CUL standards, with modular design to simplify usage and maintenance.
Welding Samples
Spécification
Modèle | DB-500 | |
Rated Capacity | KVA | 500 |
Alimentation électrique | V/Φ/Hz | 380V/3Φ/50Hz |
Max. Primary Current | A | 339 |
Primary Cable | MM2 | 3*35+2*16 |
Max. Short Circuit Current | KA | 70 |
Rated Duty Cycle | % | 20 |
Secondary Empty Voltage | V | 12.5 |
Welding Cylinder Size | Φ*L | Φ200*150 |
Max. Working Pressure | N | 24049 |
Throat Depth | MM | 400 |
Arm Gap | MM | 400 |
Dimensions | H(MM) | 2435 |
L(MM) | 1245 | |
W(MM) | 1000 | |
