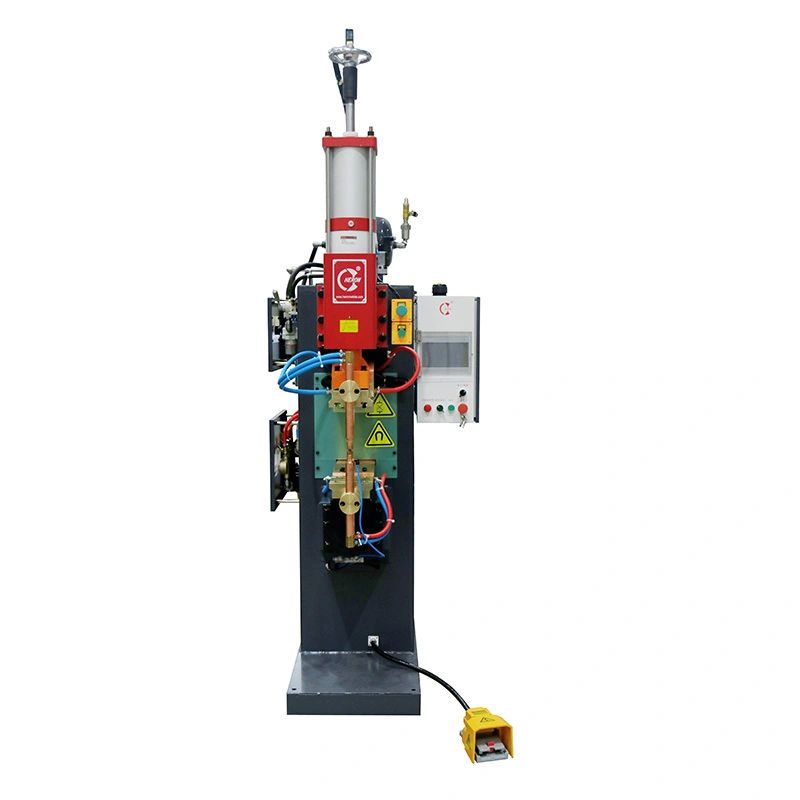

L type MFDC Spot <000000> Projection Welder DB-330KVA
Tanım
Widely used in the spot welding, projection welding, seam welding, diffusion welding of many different materials, such as non-ferrous metals, high-temperature alloys, low carbon steel, stainless steel, high-strength steel, galvanized steel, aluminum alloy, etc.
Main Features
Welding head can be | Roller ram or round shaft guide , cylinder specifications φ160 * 120 |
Equipment color | Machine body : graphite gray RAL7024, back door signal white RAL9003; control box: front :signal white RAL9003, body graphite gray RAL7024 welding head : red RAT4L001 |
Water circuit | Display table + flow switch |
Controller | HRC-802 (with PLC) |
Throat depth | 500mm |
Platen gap | 340mm |
Güç | Available for 330KVA |
Inverter size | 600A/1200A |
Electrode tile | T-type (150 wide) |
PLC | Mitsubishi / Siemens optional |
Touch screen | Kunlun Tongtai |
Feet | Shock-absorbing feet |
Başvuru
Featuring the Heron MF inverter controller HRC802/HRC803 and Heron MF transformer, the product boasts remarkable body rigidity, compact design, and minimal space footprint. Moreover, it is compliant with both European CE and North American CUL standards. The DSP architecture of the controller lends itself to versatile application, facilitating spot welding, projection welding, seam welding, and diffusion welding operations on a wide range of materials, including non-ferrous metals, high-temperature alloys, low carbon steel, stainless steel, high-strength steel, galvanized steel, and aluminum alloys.
Welding Samples
Şartname
Örnek | DB-330 | |
Rated Capacity | KVA | 330 |
Güç Kaynağı | V/Φ/Hz |
|
Maksimum. Primary Current | A | 240 |
Primary Cable | MM2 | 3*35+2*16 |
Maksimum. Short Circuit Current | KA | 58 |
Rated Duty Cycle | % | 20 |
Secondary Empty Voltage | V | 13 |
Welding Cylinder Size | Φ*L | Φ200*100 |
Maksimum. Working Pressure | N | 15359.8 |
Throat Depth | MM | 511 |
Arm Gap | MM | 524 |
Boyutlar | H(MM) | 1900 |
L(MM) | 1229 | |
W(MM) | 828 | |
