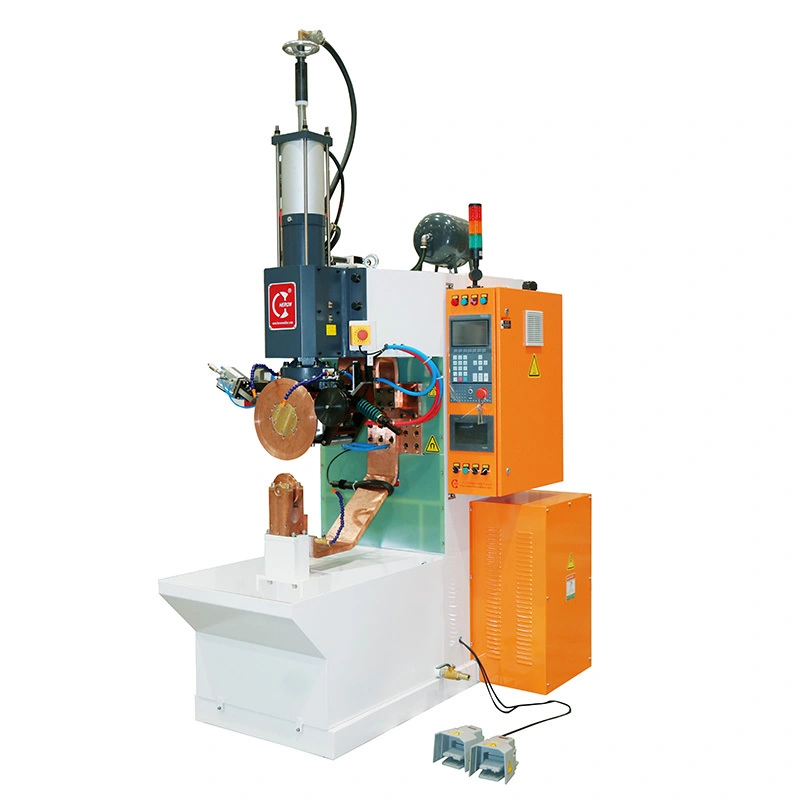

MFDC cross seam welder 165/200KVA

165/200KVA，MFDC

1шт.

FOB Гуанчжоу

1 год

Бесплатное обучение

Under 5 units one week

Auto parts industry, home appliance industry, compressor industry, hardware industry, etc

询问

写评论

Описание

MFDC cross seam welder 165/200KVA 4

It is a kind of resistance welding process using MFDC inverter power supply, with three-phase power input frequency and single-phase medium output frequency. And the increase in frequency results in a significant reduction in the size of the welding transformer.

Приложение

MFDC cross seam welder 165/200KVA 6

The MFDC seam welding machine is primarily used for seam welding on individual barrels and containers.

Welding Samples

MFDC cross seam welder 165/200KVA 8

IMG_6147副本

IMG_1930副本

DSC_0685副本

IMG_1934

Спецификация

MFDC cross seam welder 165/200KVA 13

Model #		FB-200-C**
Rated Capacity	KVA	200
Источник питания	V/Φ/Hz	380/3/50
Макс. Primary Current	A	136
Primary Cable	MM2	50
Макс. Short Circuit Current	KA	35.3
Rated Duty Cycle	%	10
Secondary Empty Voltage	V	10
Welding Cylinder Size	Φ*L	Φ160*80
Макс. Working Pressure	N	10000
Давление сжатого воздуха	MPa	0.6～0.7
Cooling Water Consumption	L/MIN	33
Потребление сжатого воздуха	L/time	5.84
Throat Depth	MM	535
Arm Gap	MM	247
Electrode Size	MM	Φ330*10
Размеры	H(MM)	2615
	L(MM)	1878
	W(MM)	1181
