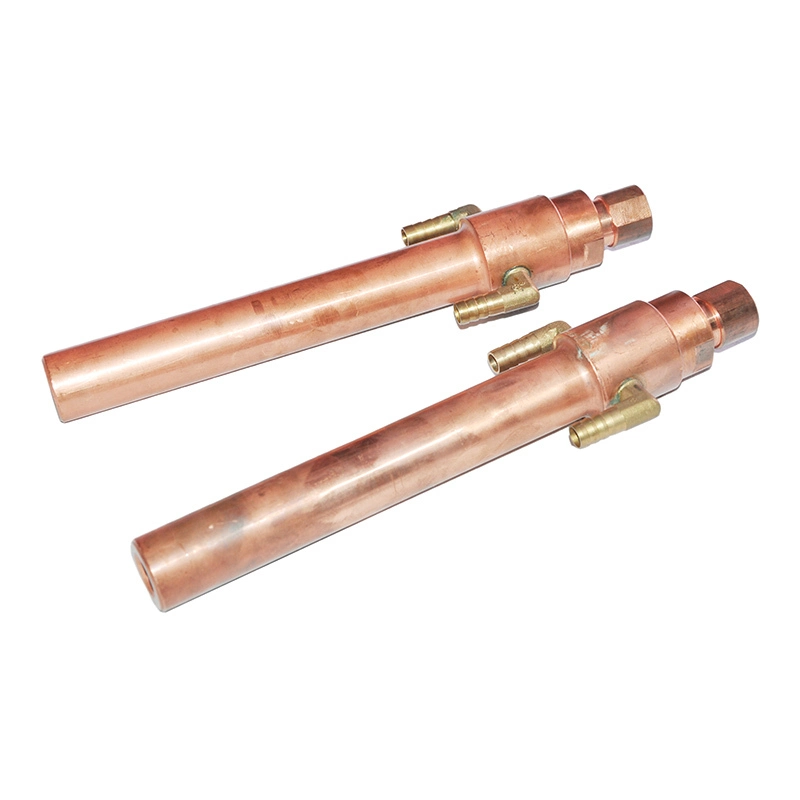

Electrode Rod For Vertical welder
Heron's electrode rod has good quality and a good price/performance ratio. The main material of it is chromium-zirconium copper
Modelo： Specialized for vertical welding equipment
MOQ: <000000>ge;2pcs
Price terms： FOB Cantão
Lead time： under 5 units one week
Industries： Auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
Descrição
Electrode parts influence the weld quality during continuous welding by more than 50%. Suitable welding materials and electrodes are critical to weld quality! Heron's electrode rod is very hard and is characterized by good resistance to abrasion and blast and good resistance to cracking.
Aplicativo
Suitable for the full range of welders Please contact us for specific needs and specification options.
Especificação
Type L 90°
Model No. | Φd | H | Q’ty | T | Material |
KLHH2550-12-1 | 12 | 50 | 1 | 1/10 | CuCrZr |
KLHH2550-16-1 | 16 | 50 | 1 | 1/10 | CuCrZr |
KLHH2550-12-2 | 16 | 50 | 1 | MT#2 | CuCrZr |
KLHH2550-12-3 | 16 | 50 | 1 | 1/5 | CuCrZr |
KLHH2550-18-1 | 18 | 50 | 1 | 1/10 | CuCrZr |
KLHH2575-12-1 | 12 | 75 | 1 | 1/10 | CuCrZr |
KLHH2575-16-1 | 16 | 75 | 1 | 1/10 | CuCrZr |
KLHH2575-16-2 | 16 | 75 | 1 | MT#2 | CuCrZr |
KLHH2575-16-3 | 16 | 75 | 1 | 1/5 | CuCrZr |
KLHH2575-18-1 | 18 | 75 | 1 | 1/10 | CuCrZr |
KLHH25100-12-1 | 12 | 100 | 1 | 1/10 | CuCrZr |
KLHH25100-16-1 | 16 | 100 | 1 | 1/10 | CuCrZr |
KLHH25100-16-2 | 16 | 100 | 1 | MT#2 | CuCrZr |
KLHH25100-16-3 | 16 | 100 | 1 | 1/5 | CuCrZr |
KLHH25100-18-1 | 18 | 100 | 1 | 1/10 | CuCrZr |
Specification Type L 90°
Type L 90°
Model No. | Φd | H | Q’ty | T | Material |
KLHH3250-12-1 | 12 | 50 | 1 | 1/10 | CuCrZr |
KLHH3250-16-1 | 16 | 50 | 1 | 1/10 | CuCrZr |
KLHH3250-12-2 | 16 | 50 | 1 | MT#2 | CuCrZr |
KLHH3250-12-3 | 16 | 50 | 1 | 1/5 | CuCrZr |
KLHH3250-18-1 | 18 | 50 | 1 | 1/10 | CuCrZr |
KLHH3275-12-1 | 12 | 75 | 1 | 1/10 | CuCrZr |
KLHH3275-16-1 | 16 | 75 | 1 | 1/10 | CuCrZr |
KLHH3275-16-2 | 16 | 75 | 1 | MT#2 | CuCrZr |
KLHH3275-16-3 | 16 | 75 | 1 | 1/5 | CuCrZr |
KLHH3275-18-1 | 18 | 75 | 1 | 1/10 | CuCrZr |
KLHH32100-12-1 | 12 | 100 | 1 | 1/10 | CuCrZr |
KLHH32100-16-1 | 16 | 100 | 1 | 1/10 | CuCrZr |
KLHH32100-16-2 | 16 | 100 | 1 | MT#2 | CuCrZr |
KLHH32100-16-3 | 16 | 100 | 1 | 1/5 | CuCrZr |
KLHH32100-18-1 | 18 | 100 | 1 | 1/10 | CuCrZr |
Specification Type L 105°
Type L 105°
Model No. | Φd | H | Q’ty | T | Material |
KLHH15-2550-12-1 | 12 | 50 | 1 | 1/10 | CuCrZr |
KLHH15-2550-16-1 | 16 | 50 | 1 | 1/10 | CuCrZr |
KLHH15-2550-12-2 | 16 | 50 | 1 | MT#2 | CuCrZr |
KLHH15-2550-12-3 | 16 | 50 | 1 | 1/5 | CuCrZr |
KLHH15-2550-18-1 | 18 | 50 | 1 | 1/10 | CuCrZr |
KLHH15-2575-12-1 | 12 | 75 | 1 | 1/10 | CuCrZr |
KLHH15-2575-16-1 | 16 | 75 | 1 | 1/10 | CuCrZr |
KLHH15-2575-16-2 | 16 | 75 | 1 | MT#2 | CuCrZr |
KLHH15-2575-16-3 | 16 | 75 | 1 | 1/5 | CuCrZr |
KLHH15-2575-18-1 | 18 | 75 | 1 | 1/10 | CuCrZr |
KLHH15-25100-12-1 | 12 | 100 | 1 | 1/10 | CuCrZr |
KLHH15-25100-16-1 | 16 | 100 | 1 | 1/10 | CuCrZr |
KLHH15-25100-16-2 | 16 | 100 | 1 | MT#2 | CuCrZr |
KLHH15-25100-16-3 | 16 | 100 | 1 | 1/5 | CuCrZr |
KLHH15-25100-18-1 | 18 | 100 | 1 | 1/10 | CuCrZr |
Specification Type L 105° 2
Type L 105° 2
Model No. | Φd | H | Q’ty | T | Material |
KLHH15-3250-12-1 | 12 | 50 | 1 | 1/10 | CuCrZr |
KLHH15-3250-16-1 | 16 | 50 | 1 | 1/10 | CuCrZr |
KLHH15-3250-12-2 | 16 | 50 | 1 | MT#2 | CuCrZr |
KLHH15-3250-12-3 | 16 | 50 | 1 | 1/5 | CuCrZr |
KLHH15-3250-18-1 | 18 | 50 | 1 | 1/10 | CuCrZr |
KLHH15-3275-12-1 | 12 | 75 | 1 | 1/10 | CuCrZr |
KLHH15-3275-16-1 | 16 | 75 | 1 | 1/10 | CuCrZr |
KLHH15-3275-16-2 | 16 | 75 | 1 | MT#2 | CuCrZr |
KLHH15-3275-16-3 | 16 | 75 | 1 | 1/5 | CuCrZr |
KLHH15-3275-18-1 | 18 | 75 | 1 | 1/10 | CuCrZr |
KLHH15-32100-12-1 | 12 | 100 | 1 | 1/10 | CuCrZr |
KLHH15-32100-16-1 | 16 | 100 | 1 | 1/10 | CuCrZr |
KLHH15-32100-16-2 | 16 | 100 | 1 | MT#2 | CuCrZr |
KLHH15-32100-16-3 | 16 | 100 | 1 | 1/5 | CuCrZr |
KLHH15-32100-18-1 | 18 | 100 | 1 | 1/10 | CuCrZr |
