4.5KJ Capacitor Discharge Welder
CDW H series capacitor discharge welders and real-time quality control systems are designed to improve the continuous reliability of welding quality. In addition, the system supports the transfer of welding parameters to an external computer during the welding process.
Modelo： Type L; 4.5KJ
MOQ: 1piezas
Price terms： FOB Cantón
Garantía： 1 año
After sale service： Servicio de formación gratuito
Lead time： under 5 units one week
Industries： auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
Descripción
The L Type CDW Spot & Projection Welder DR-4500J with roller ram, and strong frame, which ensure good spot and projection welding process reliable, and the maximum shortcut current can be 1000KA.
Especificación
Model # | DR-4500 | |
Volume of capacitor | μf | 45000 |
Rated Capacity | KVA | 10 |
Fuente de alimentación | V/Φ/Hz | 380/3/50 |
Máx. Primary Current | A | 26 |
Primary Cable | MM2 | 16 |
Máx. Short Circuit Current | KA | 38 |
Rated Duty Cycle | % | 50 |
Secondary Empty Voltage | V | 10/11.4 |
Welding Cylinder Size | Φ*L | Φ140*100 |
Máx. Working Pressure | N | 7500 |
Throat Depth | MM | 450 |
Arm Gap | MM | 313 |
Dimensiones | H(MM) | 1885 |
L(MM) | 1239 | |
W(MM) | 754 | |
Solicitud
It is widely used in automobile & auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
Welding Sample
Machine specifications
Welding head can be | Roller ram or round shaft guide , cylinder specifications φ160 * 120 |
Equipment color | |
Machine body | Graphite gray ral7024, back door signal white ral9003 |
Control box | Front : Signal white ral9003, body graphite gray ral7024 |
Welding head | Red rat4l001 |
Controller | HRC-211 |
Throat depth | 500mm, platen gap: 340mm |
Rated capacity | 4500J |

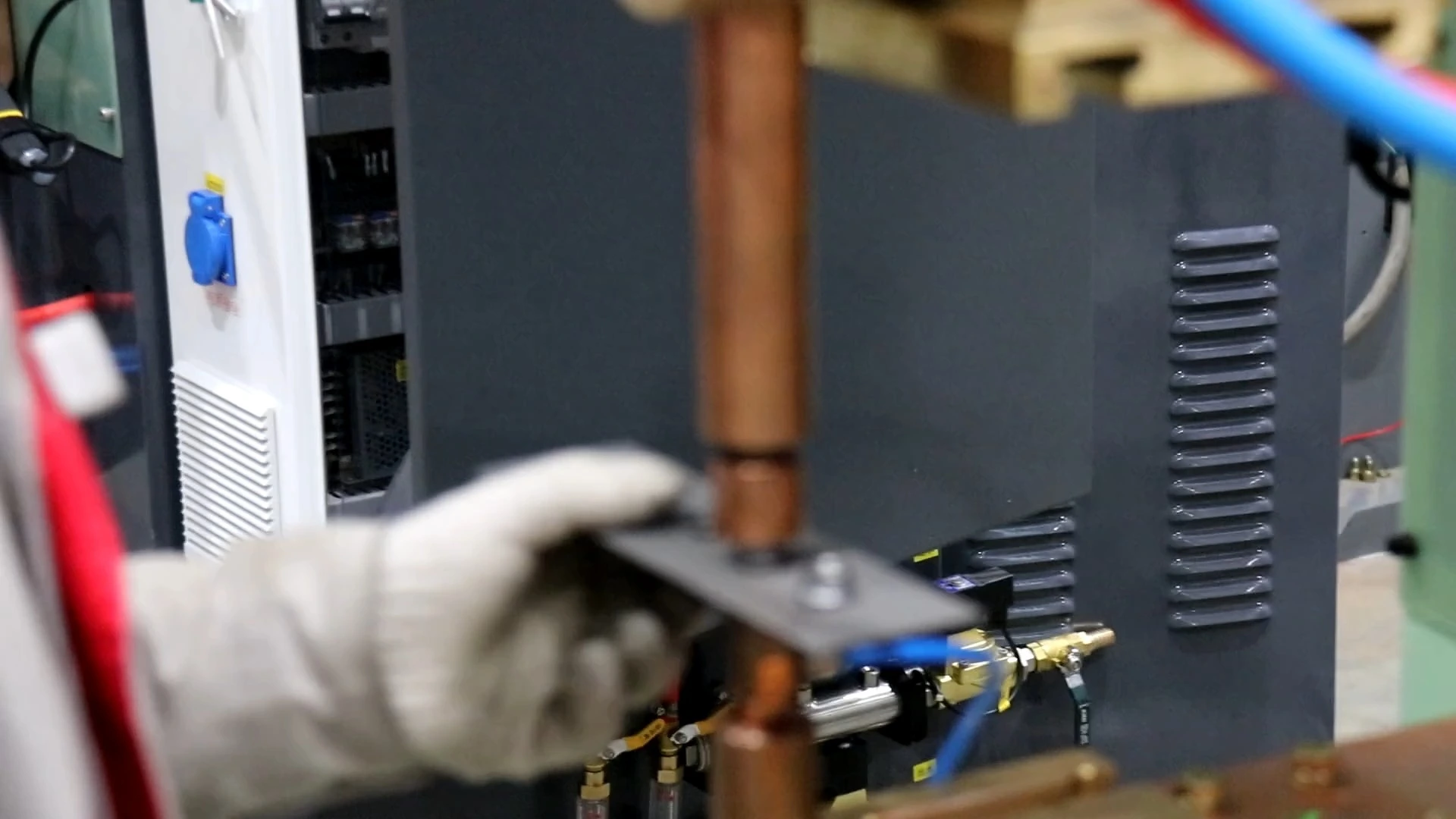

Welding effect
