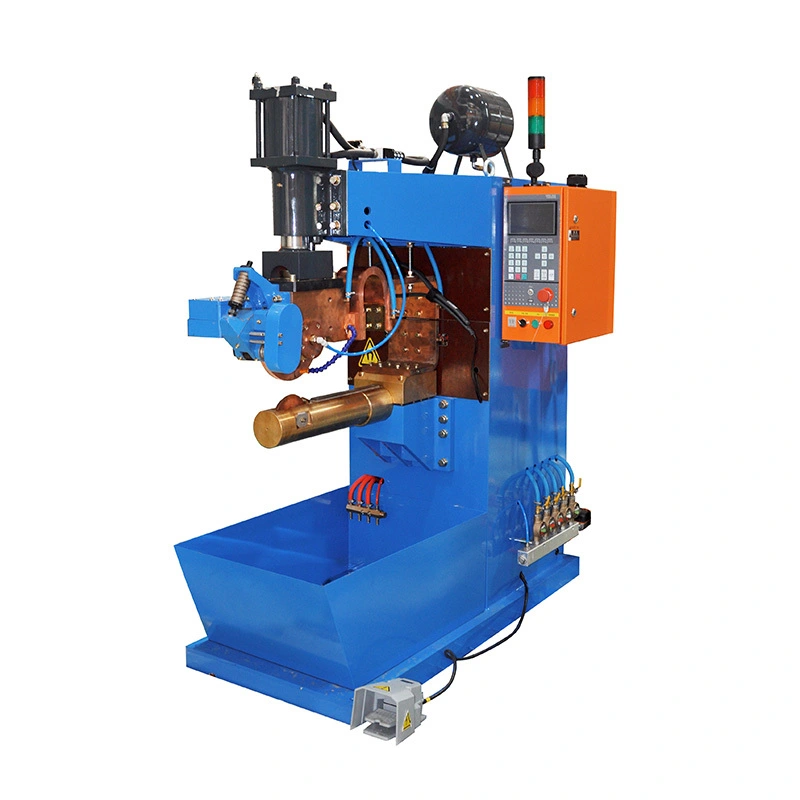

MFDC longitudinal seam welder 200KVA

25/55/110/165/200KVA，MFDC

1개

FOB 광저우

1 년도

무료 교육 서비스

Under 5 units one week

Auto parts industry, home appliance industry, compressor industry, hardware industry, etc

询问

写评论

설명

MFDC longitudinal seam welder 200KVA 4

It is a kind of resistance welding process using MFDC inverter power supply. The power input is three-phase power frequency while the output is single-phase medium frequency. And the increase in frequency results in a significant reduction in the size of the welding transformer.

애플리케이션

MFDC longitudinal seam welder 200KVA 6

It's widely used in the seam welding of many different materials, such as non-ferrous metals, high-temperature alloys, low carbon steel, stainless steel, high-strength steel, galvanized steel, aluminum alloy, etc.

Welding Samples

MFDC longitudinal seam welder 200KVA 7

p64-1 - 副本副本 (2)

IMG_5282副本 (2)

사양

MFDC longitudinal seam welder 200KVA 10

Model #		FB-200-L**
Rated Capacity	KVA	200
전원 공급 장치	V/Φ/Hz	380/3/50
최대 Primary Current	A	136
Primary Cable	MM2	50
최대 Short Circuit Current	KA	35.3
평가됨 Duty Cycle	%	10
Secondary Empty Voltage	V	10
Welding Cylinder Size	Φ*L	Φ160*80
최대 Working Pressure	N	10000
압축 공기 압력	MPa	0.6～0.7
Cooling Water Consumption	L/MIN	33
압축 공기 소비량	L/time	5.84
Throat Depth	MM	1147
Arm Gap	MM	115
Electrode Size	MM	Φ250*20
치수	H(MM)	2368
	L(MM)	2274
	W(MM)	1263
