Refrigerator Compressor Lower Case MFDC Welder
Refrigerator compressor lower case MFDC welder, air compressor welding solution, metal joining equipment's structure adopts the unique technology to guarantee the high performance.

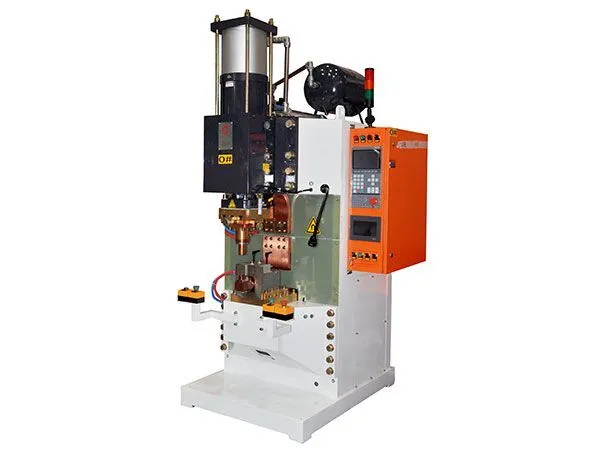

660KVA MFDC Welder for Compressor Feedthrough DB-660-18001
MFDC welder for compressor feedthrough is specially made for welding compressor feedthrough and shell toghther, featuring low material splashing, no welding slag, no leak, etc., transistor after welding won’t crack.
| Model # | ||
| Rated capacity | KVA | 500 |
| Power supply | V/Φ/HZ | 380/3/50 |
| Máx. primary current | A | 223.5 |
| Máx. Short Circuit Current | KA | 70.5 |
| Máx. working pressure | KN | 29.2 |
| Dimensions (LxWxH) | mm | 1479x1339x2914 |
250KVA MFDC Welder for Cooper Connector with Shell DB-250-18001
MFDC welder for cooper connector with shell is a specially made device according to customer’s requirement, featuring high welding quality, up to 80% better efficient, and high labor and material cost efficient.
| Model # | ||
| Rated capacity | KVA | 250 |
| Power supply | V/Φ/Hz | 380/3/50 |
| Máx. primary current | A | 150 |
| Máx. Short Circuit Current | KA | 44.5 |
| Máx. working pressure | kN | 15 |
| Dimensions (LxWxH) | mm | 881x1100x2410 |
500KVA MFDC Welder for Compressor Feedthrough DB-500-18002
The MFDC welder for compressor feedthrough features low material splashing, no welding slag, no leak, etc., transistor processed by the welder won’t crack.
| Model # | ||
| Rated capacity | KVA | 500 |
| Power supply | V/Φ/Hz | 380/3/50 |
| Máx. primary current | A | 223.5 |
| Máx. Short Circuit Current | KA | 70.5 |
| Máx. working pressure | kN | 29.2 |
| Dimensions (LxWxH) | mm | 1479x1339x2914 |
440KVA MFDC Welder for Cooper Connector with Shell DB-440-18007
MFDC welder for cooper connector with shell is able for welding process tube, suction tube and delivery tube, featuring high welding quality, up to 80% better efficient, and high labor and material cost efficient.
| Model # | ||
| Rated capacity | KVA | 440 |
| Power supply | V/Φ/Hz | 380/3/50 |
| Máx. primary current | A | 199 |
| Máx. Short Circuit Current | KA | 60 |
| Máx. working pressure | kN | 18.5 |
| Dimensions (LxWxH) | mm | 1210x1007x2736 |
440KVA MFDC Welder for Base Legs DB-440-18004
The MFDC welder for base legs performs contiunous welding work, which is efficiency; MFDC inverter welding power supply is applied, which grants DC output and low impedance, eusuring welding currrent stability.
| Model # | ||
| Rated capacity | KVA | 440 |
| Power supply | V/Φ/Hz | 380/3/50 |
| Máx. primary current | A | 19.7 |
| Máx. Short Circuit Current | KA | 57.7 |
| Máx. working pressure | kN | 12 |
| Dimensions (LxWxH) | mm | 1398x918x2259 |
220KVA MFDC Welder for Relay Bracket DB-220-18014
Manual and auto controls are available, audible and visual alarm is applied for better operating and maintenance convenience.
| Model # | ||
| Rated capacity | KVA | 220 |
| Power supply | V/Φ/Hz | 380/3/50 |
| Máx. primary current | A | 160 |
| Máx. Short Circuit Current | KA | 40 |
| Máx. working pressure | kN | 15 |
| Dimensions (LxWxH) | mm | 1210x815x2929 |
4x55KVA MFDC Welder for Pins DB-220-18041
| Model # | ||
| Rated capacity | KVA | 4x55 |
| Power supply | V/Φ/Hz | 380/3/50 |
| Máx. primary current | A | 160 |
| Máx. Short Circuit Current | KA | 30 |
| Máx. working pressure | kN | 12 |
| Dimensions (LxWxH) | mm | 1613x2312x2267 |
165KVA MFDC Automatic Welder for Relay Bracket DB-165-16032
| Model # | ||
| Rated capacity | KVA | 165 |
| Power supply | V/Φ/Hz | 380/3/50 |
| Máx. primary current | A | 85 |
| Máx. Short Circuit Current | KA | 29.8 |
| Máx. working pressure | kN | 4.6 |
| Dimensions (LxWxH) | mm | 2090x1585x1730 |
110KVA MFDC Welder for Relay Bracket DB-110-19007
MFDC Welder for grounding terminal is specially made for customer’s need, which is labor-saving and efficiency.
| Model # | ||
| Rated capacity | KVA | 110 |
| Power supply | V/Φ/Hz | 380/3/50 |
| Máx. primary current | A | 90 |
| Máx. Short Circuit Current | KA | 24 |
| Máx. working pressure | kN | 8.7 |
| Dimensions (LxWxH) | mm | 1051x1197x2223 |
The exterior and internal structure of Heron Intelligent Equipment Refrigerator compressor lower case MFDC welder, air compressor welding solution, metal joining equipment is completed by professional engineers.
