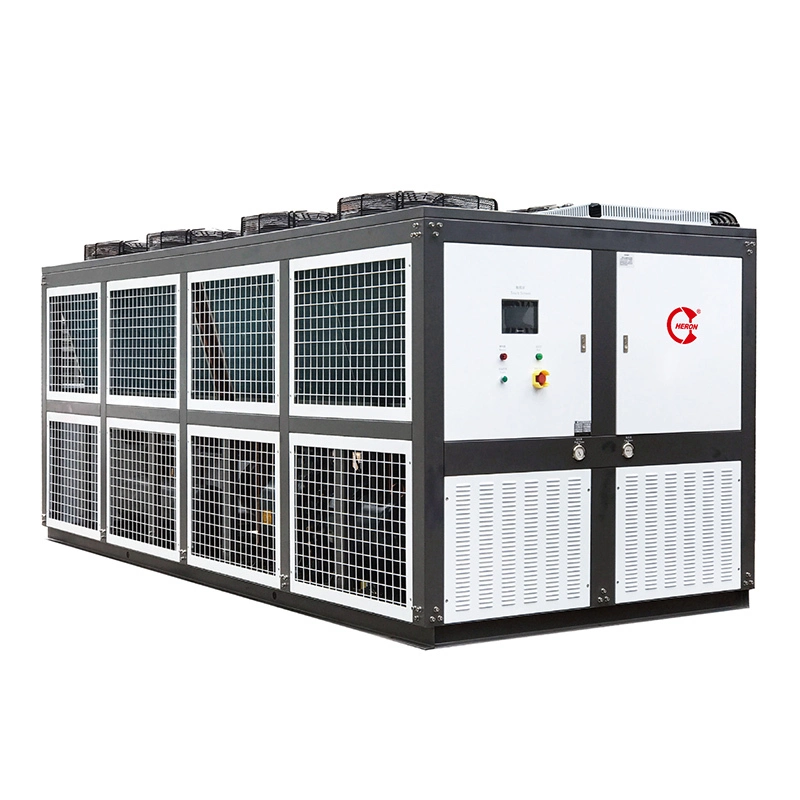

CSA Series Air Cooled Screw Type Chiller

Air cooled screw type chiller provides cold water from 5℃~35℃, which is widely applied in plastic industry, electronics, plating, chemical, ultrasonic, printing and other industrial production lines. It can precisely control the temperature, which is requested during industrial processing, as it greatly improved the production efficiency and quality.

Model： Air Cooled Screw Type

MOQ: 1szt.

Price terms： FOB Guangzhou

Gwarancja： 1 rok

After sale service： Bezpłatna usługa szkoleniowa

Lead time：

Industries： Plastic, electronics, plating, chemical, ultrasonic, printing and other industrial production lines.

询问

写评论

Opis

CSA Series Air Cooled Screw Type Chiller 2

1. Air cooled screw type water chiller is easy to install and needs to be placed in the well ventilated space (indoor / outdoor), which is an indispensable good partner of industrial production.

2. Air cooled screw type chiller is manufactured with famous brand accessories. The compressor adopts a new high efficiency spiral rotor compressor, which is 20% 30% higher in efficiency than general compressor. The chiller units are exported to the world in batches with global warranty service. Customized design in power supply voltages and refrigerants are acceptable, which is in accordance with the working environment and the import & export standards of each country.

Specyfikacja

CSA Series Air Cooled Screw Type Chiller 4

Technical parameters of Air cooled Screw Type Chiller
Przedmiot Mode		CSA-040	CSA-050	CSA-060	CSA-075	CSA-085	CSA-080D	CSA-100D	CSA-120D	CSA-150D
Nominal cooling capacity	Btu/h	352118.4	462667.2	496787.2	664657.6	784760	704236.8	925334.4	993574.4	1329315.2
	Kcal/h	88752	116616	125216	167528	197800	177504	233232	250432	335056
	KW	103.2	135.6	145.6	194.8	230	206.4	271.2	291.2	389.6
Total input power	KW	39.52	48.82	55.58	73.72	82.52	80.72	101.96	111.16	144.8
Maks. running current	A	85	105	118	160	180	171	216	236	310
Power supply voltage		3PH-380V-50HZ (200V \220V\415V\460V 60HZ)
Refrigerant		R22（R407c/R134a)
Refrigerant control mode		Thermostatic Expansion valve
Compressor	Typ	Semi-Hermetic screw type
	Qty.	1					2
	Power（KW）	36.4	45.7	50.3	65.8	74.6	36.4*2	45.7*2	50.3*2	65.8*2
	Starting mode	Y-△
	Capacity control（%）	0-33-66-100		0-25-50-75-100
Condenser	Typ	High-efficient air cooled inner threaded copper-tubing aluminum fin type
Cooling Fan	Power（KW）	3.12	3.12	5.28	7.92	7.92	7.92	10.56	10.56	13.2
	Typ	Low noise outer rotor fan
	Air volume（m3/h）	40000	48000	60000	75000	100000	75000	100000	120000	150000
*Evaporator*	Typ	Shell and Tube
	Qty.	1						2
	Chilled fluid flow（m3/h）	18	23	25	34	40	36	47	50	68
	Inlet/outlet pipe caliber(Inch)	3	3	3	3	4	4	4	4	5
Safty protection	Compressor overheating , overloading, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing.
Wymiar	L(mm)	2400	2400	3000	3500	3700	3500	4400	4800	6200
	W(mm)	1900	1900	2000	2000	2000	2000	2000	2000	2000
	H(mm)	1900	1900	1900	1900	1900	1900	1900	1900	1900
Waga	KG	1600	1800	1950	2260	2500	2400	2700	3700	4000
Running weight	KG	1800	2000	2150	2420	2800	2700	2950	4000	4350
Note：1. Nominal cooling capacity calculated according to:Inlet/outlet chilled fluid temperature : 12℃/7℃, Inlet/outlet cooling air temperature: 35℃/45℃. 2. Working condition:The temperature range of chilled fluid is from 5℃ to 30℃, Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃. It is better to run the chiller while the ambient temperature at or below 38℃.Temperature difference between inlet and outlet cooling air : 8℃ to 12℃. We reserve the right to modify the above information without further notice.
