Low Temperature Water Chiller
This low temperature water chiller provides cold water temperature rang from 35℃~35℃, and the cooling capacity is from 3KW~400KW. It is widely used in beverage filling, pharmaceutical, chemical, food and bioengineering, beer brewing and other industries.
Model： Low temperature water cooled
MOQ: 1stuks
Price terms： FOB Guangzhou
Garantie： 1 jaar
After sale service： Gratis trainingsservice
Lead time：
Industries： Beverage filling, pharmaceutical, chemical, food and bioengineering, beer brewing and other industries
Beschrijving
The low temperature water chiller consists mainly of：
Air Cooled Glycol Water Chiller
Water Cooled Glycol Water Chiller

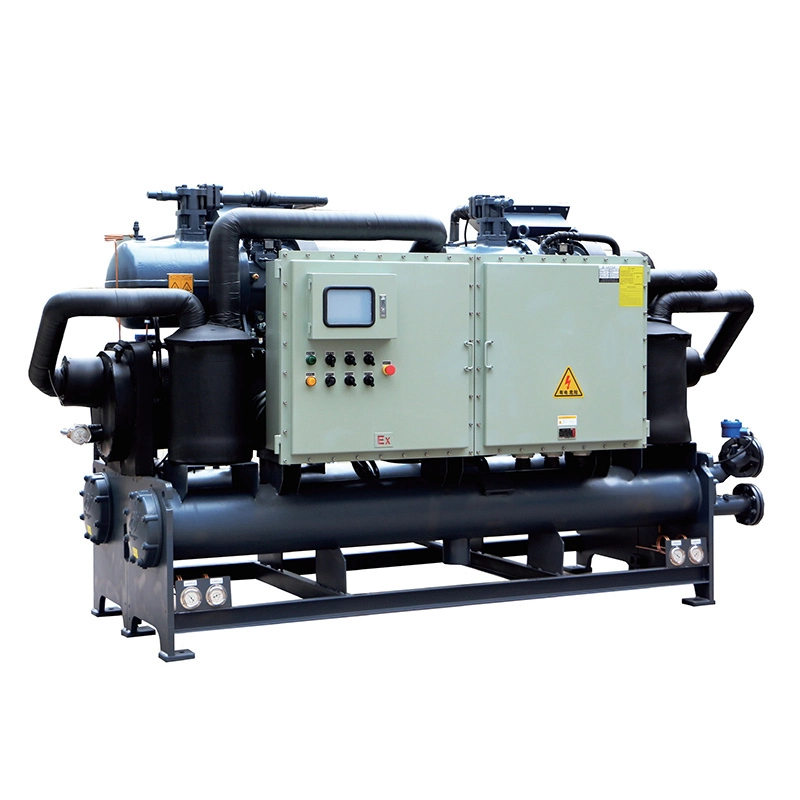

Water Cooled Screw Type Glycol Chiller
Specificatie
| CA-L Series Low temperature Air cooled industrial chiller | ||||||||||||
| Mode | CA-03L | CA-05L | CA-08(D)L | CA-10(D)L | CA-12(D)L | CA-15L | CA-20(D)L | CA-25(D)L | CA-30(D)L | CA-40FL | ||
| Item | ||||||||||||
| Nominal cooling capacity | -5℃ | KW | 5.57 | 8.5 | 13.68 | 17 | 20.4 | 22.6 | 32 | 36.4 | 45.2 | 64 |
| 50HZ | 6.99 | 10.41 | 16.6 | 20.82 | 24.96 | 27.5 | 38.8 | 45 | 55 | 77.6 | ||
| -10℃ | 60HZ | 4.32 | 6.38 | 10.8 | 12.76 | 15.32 | 20.2 | 26.5 | 31.36 | 40.4 | 53 | |
| 5.22 | 7.75 | 12.8 | 15.5 | 18.72 | 24.36 | 31.76 | 34.4 | 48.72 | 63.52 | |||
| -20℃ | 2.8 | 4.03 | 6.8 | 8.06 | 9.76 | 12.8 | 17.36 | 20.54 | 25.6 | 34.72 | ||
| 3.47 | 4.82 | 8.2 | 9.64 | 11.8 | 15.44 | 20.3 | 23.76 | 30.88 | 40.6 | |||
| Total input power | KW | 3.3 | 4.68 | 7.25 | 9.9 | 11.36 | 13.47 | 19.26 | 21.3 | 30.24 | 38.7 | |
| Power supply voltage | 3PH 380V 50HZ(60HZ) | |||||||||||
| Refrigerant | Type | R22(R404A/R507) | ||||||||||
| Control mode | Expansion valve | |||||||||||
| Compressor | Type | Hermetic Scroll type(reciprocating type) | ||||||||||
| Power（KW） | 2.56 | 3.75 | 3.02*2 | 3.75*2 | 4.46*2 | 12.2 | 7.6*2 | 8.77*2 | 12.2*2 | 7.6*4 | ||
| Condenser | Type | High efficient finned copper tube+ low noise outer rotor fan | ||||||||||
| Evaporator | Type | Shell and tube | ||||||||||
| Chilled fluid flow(m3/h) | 1.36 | 2.22 | 3.52 | 4.44 | 5.03 | 7.1 | 8.84 | 10.06 | 13.6 | 17.75 | ||
| 1.59 | 2.65 | 4.2 | 5.3 | 5.93 | 8.37 | 10.41 | 11.86 | 16.33 | 21.29 | |||
| Inlet/outlet pipe caliber | 1" | 1" | 1" | 1-1/2" | 1-1/2" | 2" | 2-1/2" | 2-1/2" | 2-1/2" | 3" | ||
| Water pump | Power(KW) | 0.55 | 0.55 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 4 | 4 | |
| Pump head (m) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 25 | 20 | ||
| Veiligheidsbescherming | Compressor overheating , over current, high and low pressure, over temperature , flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing. | |||||||||||
| Dimensie | L (mm) | 930 | 1140 | 1310 | 1680 | 1680 | 1850 | 2000 | 2000 | 1850 | 1950 | |
| W (mm) | 520 | 560 | 720 | 810 | 810 | 990 | 1130 | 1130 | 1480 | 1800 | ||
| H (mm) | 1075 | 1140 | 1430 | 1540 | 1540 | 1680 | 1720 | 1864 | 1900 | 1870 | ||
| Gewicht | Kg | 135 | 160 | 270 | 320 | 380 | 520 | 600 | 660 | 920 | 1400 | |
Note 1. Nominal cooling capacity calculated according to: When at -10℃, inlet/ outlet chilled fluid temperature is 0℃/-5℃ ; when at -10℃, it is -5℃/-10℃; when at -20℃, it is -15℃/-20℃. Inlet/ outlet cooling air temperature: 30℃/38℃ 2. Working condition： The temperature range of chilled fluid is from -25℃ to 10℃ Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃, It is better to run the chiller while the ambient temperature at or below 35℃, We reserve the right to modify the above information without further notice. | ||||||||||||
| CW-L Series low temperature Water cooled industrial chiller | ||||||||||||
| Mode | CW-03L | CW-05L | CW-08(D)L | CW-10(D)L | CW-12(D)L | CW-15L | CW-20(D)L | CW-25(D)L | CW-30(D)L | CW-40FL | ||
| Item | ||||||||||||
| Nominal cooling capacity | -5℃ | KW | 6.06 | 9.15 | 14.9 | 18.3 | 22 | 27 | 35.6 | 40.8 | 54 | 71.2 |
| 50HZ | 7.61 | 11.2 | 18 | 22.4 | 27 | 33 | 44 | 50 | 66 | 88 | ||
| -10℃ | 60HZ | 4.93 | 7 | 11.8 | 14 | 17 | 22 | 29.4 | 32 | 44 | 58.8 | |
| 6 | 8.5 | 14.2 | 17 | 20.6 | 27 | 35 | 38 | 54 | 70 | |||
| -20℃ | 3.1 | 4.5 | 7.6 | 9 | 10.8 | 14 | 17.5 | 22 | 28 | 35 | ||
| 3.8 | 5.4 | 9 | 10.8 | 12.2 | 17 | 22.6 | 27 | 34 | 45.2 | |||
| Total input power | KW | 2.8 | 4.5 | 6.75 | 8.6 | 10.1 | 12.75 | 17.2 | 20.95 | 26.5 | 34 | |
| Power supply voltage | 3PH 380V 50HZ(60HZ) | |||||||||||
| Refrigerant | Type | R22(R404A/R507) | ||||||||||
| Control mode | Expansion valve | |||||||||||
| Compressor | Type | Hermetic Scroll type(reciprocating type) | ||||||||||
| Power(KW) | 2.25 | 3.75 | 6 | 7.5 | 9 | 11.25 | 7.5*2 | 9.37*2 | 22.5 | 30 | ||
| Condenser | Type | Shell and tube | ||||||||||
| Cooling water volume(m3/h) | 2.1 | 3.5 | 5.2 | 6.76 | 7.9 | 10.7 | 13.9 | 15.8 | 21.1 | 26.7 | ||
| 2.5 | 4.2 | 6.1 | 7.4 | 9.3 | 11.7 | 16.3 | 18.6 | 25.2 | 29.7 | |||
| Inlet/outlet pipe caliber | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" | 2" | 2" | 2-1/2" | 3" | 3" | ||
| Evaporator | Type | Shell and tube | ||||||||||
| Chilled fluid flow(m3/h) | 1.58 | 2.58 | 4.1 | 5.2 | 5.85 | 8.25 | 10.3 | 11.69 | 15.65 | 20.6 | ||
| 1.86 | 3.08 | 4.9 | 6.2 | 6.9 | 9.73 | 12.11 | 13.79 | 18.67 | 24.8 | |||
| Inlet/outlet pipe caliber | 1" | 1" | 1" | 1-1/2" | 2" | 2" | 2-1/2" | 2-1/2" | 2-1/2" | 3" | ||
| Water pump | Power(KW) | 0.55 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 | 2.2 | 4 | 4 | |
| Pump head(m) | 18 | 18 | 18 | 20 | 20 | 20 | 20 | 20 | 25 | 20 | ||
| Veiligheidsbescherming | Compressor overheating , over current, high and low pressure, over temperature , flow switch, phase sequence, phase-missing, exhaust overheating, anti-freezing. | |||||||||||
| Dimensie | L(mm) | 890 | 890 | 1170 | 1170 | 1170 | 1700 | 1700 | 1700 | 1880 | 2100 | |
| W(mm) | 500 | 500 | 710 | 710 | 710 | 810 | 810 | 810 | 910 | 1100 | ||
| H(mm) | 940 | 940 | 1310 | 1310 | 1310 | 1620 | 1620 | 1620 | 1820 | 1960 | ||
| Gewicht | Kg | 130 | 150 | 285 | 335 | 360 | 550 | 650 | 700 | 900 | 1200 | |
Note 1. Nominal cooling capacity calculated according to: When at -10℃, inlet/ outlet chilled fluid temperature is -0℃/-5℃ ; when at -10℃, it is -5℃/-10℃; when at -20℃, it is -15℃/-20℃. Inlet/ outlet cooling water temperature: 25℃/30℃. 2. Working condition： The temperature range of chilled fluid is from -25℃ to 10℃ Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃ , The temperature range of cooling water from 18℃ to 35℃, temperature difference between inlet and outlet coolig water is from 3.5℃ to 10℃. We reserve the right to modify the above information without further notice. | ||||||||||||
Specificatie
| Technical parameters for Low temperature water cooled screw chiller unit | |||||||||||||
 项目Item 型号 Model
| CSW-40L | CSW-50L | CSW-60L | CSW-75L | CSW-85L | CSW-100L | CSW-120L | CSW-140L | CSW-170DL | CSW-200DL | CSW-240DL | ||
| Nominal cooling capacity | -10℃ | kW | 74.7 | 97.2 | 107.5 | 129.5 | 167.4 | 193.6 | 230.2 | 273.6 | 334.8 | 387.2 | 460.4 |
| -20℃ | 50.4 | 65.6 | 72.5 | 87.4 | 112.9 | 130.6 | 155.3 | 184.6 | 225.8 | 261.2 | 310.6 | ||
| -30℃ | 31.6 | 41.2 | 45.5 | 54.8 | 70.9 | 82 | 97.5 | 115.9 | 141.8 | 164 | 195 | ||
| Power supply voltage | 3φ 380V 50Hz | ||||||||||||
| Total input power | kW | 35.9 | 45.4 | 50.8 | 59.4 | 76.4 | 88.3 | 105.2 | 124.3 | 152.8 | 176.6 | 210.4 | |
| Compressor | Type | Semi-hermetic screw type | |||||||||||
| Mode | RC2-140B | RC2-180B | RC2-200B | RC2-230B | RC2-300B | RC2-340B | RC2-410B | RC2-470B | RC2-300B×2 | RC2-340B×2 | RC2-410B×2 | ||
| Stroom | kw | 35.9 | 45.4 | 50.8 | 59.4 | 76.4 | 88.3 | 105.2 | 124.3 | 76.4*2 | 88.3*2 | 105.2*2 | |
| Refrigerant | R22/R404a | ||||||||||||
| Thermostatic expansion valve | |||||||||||||
| Starting mode | Y-△ | ||||||||||||
| Capacity control | 0-25-50-75-100 | ||||||||||||
| Evaporator | Type | Shell and tube high efficient heat exchanger | |||||||||||
| Chilled fluid flow | m3/h | 22.5 | 29.5 | 32.2 | 39.2 | 43.1 | 59.1 | 64.4 | 78.4 | 86.1 | 97.3 | 118.8 | |
| Inlet/outlet pipe caliber | Inch | 3" | 3" | 3" | 4" | 4" | 4" | 5" | 5" | 5" | 5" | 5" | |
| Condenser | Type | High efficient horizontal Shell and tube heat exchanger | |||||||||||
| Cooling water flow | m3/h | 18.4 | 23.9 | 26.3 | 31.6 | 37.4 | 47.8 | 52.6 | 63.2 | 75 | 100 | 128.8 | |
| Inlet/outlet pipe caliber | Inch | 3" | 3" | 3" | 4" | 4" | 4" | 5" | 4"*2 | 4"*2 | 4"*2 | 4"*2 | |
| Safety protection | Compressor overheating, overloading, high and low pressure, over temperature , flow switch, phase sequence, phase missing, exhaust overheating, anti-freezing. | ||||||||||||
| Dimensie | L | mm | 2400 | 2600 | 2900 | 2900 | 2900 | 2900 | 2950 | 2950 | 2950 | 3580 | 3580 |
| W | mm | 940 | 940 | 900 | 900 | 900 | 900 | 1100 | 1100 | 1100 | 1100 | 875 | |
| H | mm | 1540 | 1750 | 1850 | 1850 | 1850 | 1850 | 1850 | 1850 | 1850 | 1950 | 1950 | |
| Gewicht | N.W | kg | 820 | 950 | 1120 | 1200 | 1300 | 1920 | 2250 | 2450 | 2500 | 2610 | 3460 |
| Running weight | kg | 970 | 1060 | 1270 | 1380 | 1480 | 2230 | 2550 | 2710 | 2750 | 2860 | 3830 | |
|
Note：1. nominal cooling capacity calculated according to: The chilled fluid is the 60% Ethylene Glycol aqueous solutions. Inlet/ outlet cooling water temperature: 32℃/ 37℃.
2. Working condition: The temperature range of chilled fluid is from -5℃ to -30℃. Temperature difference between inlet and outlet chilled fluid is from 2.5℃ to 10℃ The temperature range of cooling water from 22℃ to 37℃, Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃. 3. The 60% Ethylene Glycolshould be prepared in customer side. We reserve the right to modify the above information without further notice. | |||||||||||||
