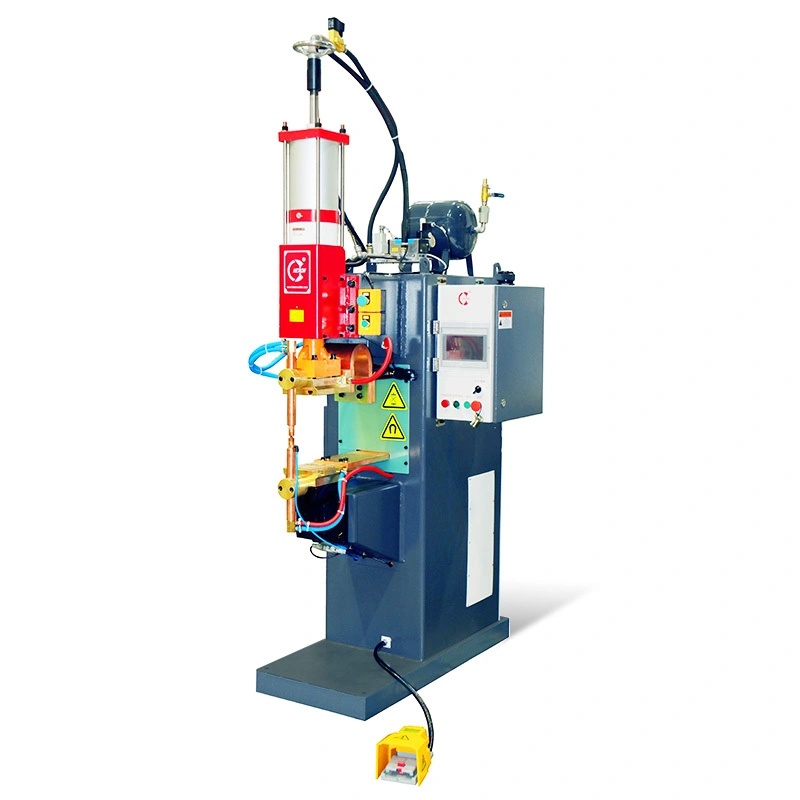

L type MFDC Spot & Projection Welder DB-280KVA
Description
The L type MFDC spot & projection welder DB-280 with roller ram and strong frame, which ensure excellent spot and reliable projection welding process, with the rise of welding current in 3ms and a maximum short-circuit current of 60KA.
Main Features
|
Welding head can be |
Roller ram or round shaft guide , cylinder specifications φ160 * 120 |
|
Equipment color |
Machine body: Graphite gray RAL7024, back door signal white RAL9003; Control box: Front: Signal white RAL9003, body graphite gray RAL7024; Welding head: Red RAT4L001 |
|
Water circuit |
Display table + flow switch |
|
Controller |
HRC-802 (with PLC) |
|
Throat depth |
500mm |
|
Platen gap |
340mm |
|
Power |
Available for 110/165/220/280/330/440KVA |
|
Inverter size |
600A/1200A |
|
Electrode tile |
T-type (150 wide) |
|
PLC |
Mitsubishi / Siemens optional |
|
Touch screen |
Kunlun Tongtai |
|
Feet |
Shock-absorbing feet |
Application
It is used for various materials including non-ferrous metals, high-temperature alloys, and steel, as well as finding its applications in industries such as automotive, home appliances, and hardware.
Welding Samples
Specification
|
Model |
DB-280 |
|
|
Rated Capacity |
KVA |
280 |
|
Power Supply |
V/Φ/Hz |
3*35+2*16 |
|
Max. Primary Current |
A |
460 |
|
Primary Cable |
MM2 |
3*35+2*16 |
|
Max. Short Circuit Current |
KA |
60 |
|
Rated Duty Cycle |
% |
10 |
|
Secondary Empty Voltage |
V |
12.5 |
|
Welding Cylinder Size |
Φ*L |
Φ160*120 |
|
Max. Working Pressure |
N |
10000 |
|
Throat Depth |
MM |
497 |
|
Arm Gap |
MM |
405 |
|
Dimensions |
H(MM) |
2396 |
|
L(MM) |
1100 |
|
|
W(MM) |
826 |
|
